You can create your own program if you want to automate the running of your process models.
Key Concept
Dear HR Expert,
I read your article in the January 2005 issue of HR Expert regarding automating payroll postings with a process model, and I liked it very much. How do you set up a process model to run on a recurring basis (i.e., every two weeks at 9 a.m.)? That’s very easy to do in SM37 Job Maintenance, but in the Process Workbench PUST, I couldn’t find any way to release a process on a repeating basis. If you could point me in the right direction I would appreciate it.
HRIS Programmer Analyst Senior
Thanks for the question. No standard R/3 program exists to do what you ask. The way SAP has designed the HR Process Monitor (transaction PUST) requires user actions to release and execute a process. However, it shouldn’t be too hard to create your own program to do this, and then schedule it via SM37. Your custom program would have two steps. First, it would create the HR process for your regular payroll, and then it would execute that process.
I often start custom programs like this by investigating comparable R/3-standard programs. Two standard programs create and start HR processes without requiring the user to go through the HR Process Monitor. The first is program RPUOCB00, which is used for the subsequent off-cycle payroll activities. It’s the program that processes all your online off-cycle payroll activity through the off-cycle process models. The other program is OT_RUN_PROCESS_MODEL_CALL, which is used to run a process model for the R/3 Payroll outsourcing module. This second program is less complicated and serves as a better model for what you want to do because it doesn’t have a lot of extra logic for read the off-cycle transaction table T52OCG.
Each of these programs eventually calls function module HRPY_PUST_CREATE_PROCESS to create the process, as shown in Figure 1. Then they call method CL_HR_PM_PW_START_MANAGER to start the process manager for that process that was just created. Figure 2 shows the method for starting the process for the outsourcing program. In your custom program, instead of method START_INTERNAL_OT, which is specific for the outsourcing functionality, you would use method START_INTERNAL.
Report RPUOCB00 has several extra steps between the creation and the starting of the process because it has to fill each one with the specific personnel numbers that were selected from the Off-Cycle Workbench. Since you are starting a process for a regular payroll period, those extra steps can be ignored.

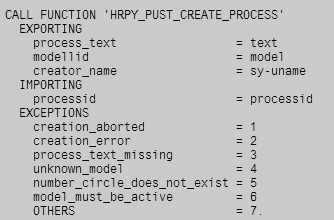

Figure 1
Function module for creating a process

Figure 2
Method for releasing a process
Steve Bogner
Steve Bogner is a managing partner at Insight Consulting Partners and has been working with SAP HR since 1993. He has consulted for various public, private, domestic, and global companies on their SAP HR/Payroll implementations; presented at the SAP user's group ASUG; and been featured on the Sky Radio Network program regarding SAP HR.
Steve will be presenting at the upcoming HR Payroll Seminar November 7-8 in Chicago and November 27-28 in Orlando. For information on the event, click
here.
You may contact the author at sbogner@insightcp.com.
