Before SAP R/3 4.6C, auditing in SAP systems was transaction based with some configuration processes. To make it easier for the auditors, the audit feature now is role based, with individual roles assigned to a user master record. It is important to use the standard feature of SAP because it needs no investment and gives you a standardized audit structure. We’ll go over the role-based audit features in SAP ERP Central Component (SAP ECC) 6.0 and some related configuration.

SAP Audit Feature Overview and Configuration

The SAP audit feature (formerly referred to as Audit Information System [AIS]) improves audit quality and rationalizes audit methods. It consists of the audit report tree, which helps with one of the biggest issues facing SAP GRC professionals: Where do you find audit-relevant information? The SAP audit feature includes SAP standard programs that help with:

• Information retrieval using existing SAP programs
• Preconfigured reports to know who has access to critical transactions
• Standards/checklist for auditing to customize audit programs

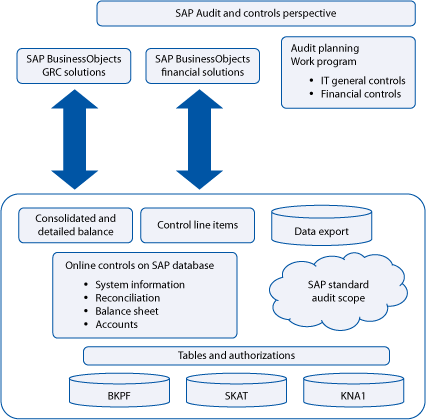

Figure 1 gives a visual overview of the audit feature with authorizations in the back end to provide access to key audit reports. The reports are populated in the menu tree by functional area (e.g., business, system audit) and the online reports cover the system information, reconciliation, balance sheet, and accounts. The data export functionality helps to interface with external audit reporting software, especially SAP BusinessObjects GRC solutions.

Figure 1

Visual overview of SAP audit

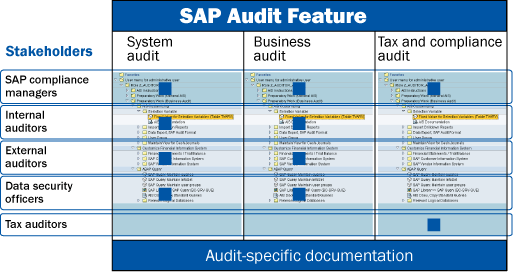

The key stakeholders in the audit environment are shown in Figure 2. Reports of the individual procedures are available at any time in real time with balance sheet and profit and loss statement (P&L) data, accounts and transaction figures, line items, and processes that internal auditors, external auditors, data security officers, and tax auditors can leverage.

Figure 2

Stakeholders in SAP audit feature

SAP audit features are designed to assist with holistic and integrated audit scenarios that have become prevalent since the advent of Sarbanes-Oxley in the US:

• Business audit: This structure supports the audit approaches driven by a financial statement-oriented or process-oriented audit with global organizations. The auditor has access to evaluation programs with default control data for every check field. This assists in audit information to be focused on custom organizational values for each company.
• System audit: This is the essential IT general control (ITGC)-driven approach helping to cover key technical settings and useful ITGC information such as all the system parameters, user access review – critical access, and security audit logging.
• Tax/compliance audit: A tax audit covers specific state and local tax issues and integrates some features from SAP Data Retention Tool (DART) geared towards IRS and other tax reporting.

Role-Based Concept for the SAP Audit

The SAP ECC 6.0 role-based audit feature consists of several single end-user roles (transaction- and authorization-based roles). To work with the SAP audit, the auditor needs a user ID in the SAP system with the relevant single roles (transaction and authorization roles) assigned to his or her user master record.

Single roles are divided into two groups:

• Transaction roles: Contain a menu, but have no authorization values
• Authorization roles: Contain authorization values, but have no menu

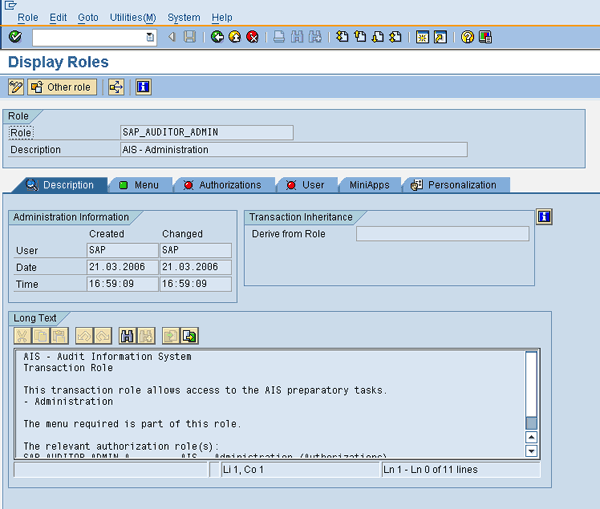

The detailed description of each role is provided in the description area of transaction PFCG (profile generator) (Figure 3). Pull up the menu role and read the information in the Description tab.

Figure 3

Description of single roles in profile generator

Categorization of Roles

Auditor roles are classified into the following important areas:

• System audit
• Business audit
• SAP audit administration
• One single composite role (contains all roles)

Each of these above can further be classified into:

• Transaction-based roles
• Authorization-based roles

Figure 4 lists transaction and authorization roles by audit area. The SAP audit roles can be divided into system audit, business audit, and auditor admin, which are further divided into transaction-based roles and authorization-based roles. It is important for the auditor to get both transaction- and authorization-based roles to execute all reports.

Figure 4

List of roles by audit area

Two composite roles contain all single roles along with authorization roles.

• SAP_AUDITOR: SAP audit (system and business audit)
• SAP_AUDITOR_TAX: SAP audit – tax audit

It is a good practice to customize all standard roles to your company’s landscape, and customize the authorization-level data based on organization policy. For example, you can convert the role SAP_AUDITOR to Z_AUDITOR.

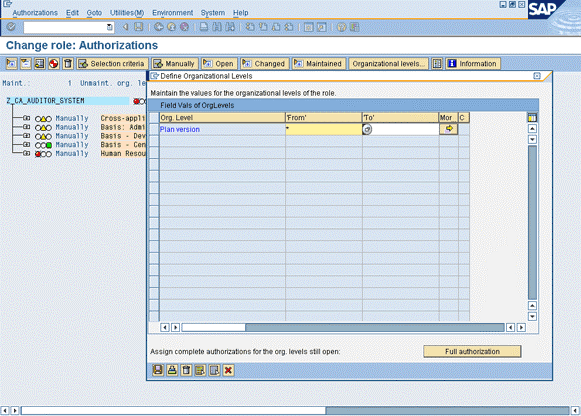

You need to maintain the authorization-based roles with the right values in them. Taking the example of authorization-based role SAP_CA_AUDITOR_SYSTEM, Figure 5 shows the high-level hierarchy of roles, which you can find in SAP Note 0451960.

Figure 5

The authorizations to be maintained in profile generator

After assigning the right roles to the auditor’s user master record (transaction and authorization role), the menu tree for the auditor looks like what is shown in Figure 6.

Figure 6

Menu tree populated on role assignment

SAP Audit Process Flow

Figure 7 details the steps you need to execute in sequence to have the audit feature functioning.

Figure 7

SAP audit process flow

Configuration Procedure (Systems and Business Audit)

After assigning the auditor admin roles to the auditor’s user master record, the system populates the menu tree with configuration steps to be followed. With each configuration step, documentation is provided to guide the configuration procedure.

The configuration procedure is divided into two groups:

• Preparatory Work (General AIS): General audit configuration is needed for both system and business audits. This step involves assigning roles to auditors and must be performed by the security admin and the auditor admin as it gives profile generator access (Figure 8).

Figure 8

General audit configuration process

• Preparatory Work (Business Audit): This section is needed for customizing the business audit to the organization’s environment, the details of which are provided in the documentation with each step. Once this step is performed, the business audit piece is customized to the organization’s environment and is ready to be used for financial audits. Figure 9 shows the menu tree populated for business audit once the right roles are assigned.

Figure 9

Business audit configuration
