SAP’s standard functions and operations provide functionality to solve most time and payroll calculations. But in some cases they don’t, and that is when you can develop custom functions and operations. Both payroll and time management can use custom functions and operations. The process for creating them is much the same.

I’m going to introduce you to the basics of knowing when to create custom functions and operations, if it is a function or an operation that is needed, and how to design, code, and use them.

Build a Function or an Operation?

Custom functions and operations require a good deal of thought, analysis, and design. My rule of thumb is that 90 percent of the effort should be spent in analysis and only 10 percent on coding. Functions and operations are coded in ABAP, so you have all the flexibility of that programming language, but should you create a custom function or a custom operation?

Table 1 has guidelines on how to know when to create a function versus an operation, but keep in mind there are no hard and fast rules on when to do one or the other. A function performs a specific job. For example, it reads data from custom tables, manipulates multiple wage types at the same time, calculates taxes, and processes wage types. An operation does a small unit of work, such as multiplying a single wage type’s number by a rate to get an amount.

Example 1: Time Evaluation Operation for Sell-Back Hours

I ran into a recent requirement to provide the number of paid time off (PTO) sell-back hours to the time evaluation program RPTIME00. This PTO sell-back number was stored in a custom infotype 9002, and the time evaluation schema needed it for a calculation. This custom operation was called ZSLBK. The ABAP code for this is simple, as shown in Figure 1.

form opzslbk.
  tables: pa9002.
* act-anz is the HRS field in time eval
  act-anz = 0.
* get the field on infotype 9002
  select * from pa9002 where pernr = pernr-pernr and
                             endda >= acdate and
                             begda <= acdate.
    act-anz = pa9002-z_hrsbback.
  endselect.
endform.                    “opzslbk


When operation ZSLBK is called from time evaluation, RPTIME00 actually executes the ABAP form opzslbk. The ABAP code for that form sets the HRS field to zero (act-anz = 0), then reads table pa9002 for the current personnel number (the pernr-pernr field). The acdate field is the accounting date for time evaluation — which is the current day being processed in the time schema. As with most functions, operations, or ABAP code in general, there are other ways to accomplish this. For example, some programmers might use the HR_READ_INFOTYPE function to read infotype 9002 instead of directly accessing table PA9002.

Rules and functions must also be defined via transaction PE04, the function/operation editor. A number of attributes are specified here. Table 2 describes the more frequently used ones.

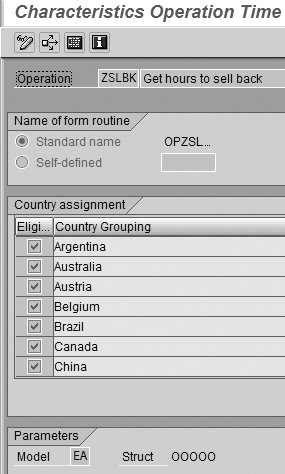

Operation ZSLBK has a simple configuration in PE04, as shown in Figure 2.

Figure 2

Attributes of operation ZSLBK

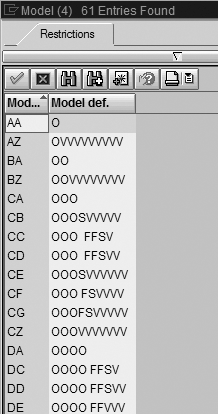

A critical attribute of a rule is the parameter model — in the case of operation ZSLBK, the parameter model is EA. The structure of the parameter model EA is OOOOO — five letter Os. The letter “O” is used to tell the payroll driver that whatever takes that space is part of an operation name. Since ZLSBK is a five-character operation, model EA fits well. There are many possibilities for the parameter model, as shown in Figure 3. The letter “F” is a symbol for a field parameter, “V” is for a value parameter, and “S” is for the mathematical sign.

Figure 3

Parameter models for operations

Returning a Value to the Variable Key in a Rule

One of the most important uses of operations is to return a value into the rule’s variable key so that a decision can be made. Operation ZXPTO is an example of that. It reads a custom field from infotype 1 and returns it to the variable key, as shown in Figure 4.

form opzxpto.
* find the infotype 1 valid as of the acdate
  loop at p0001 where endda >= acdate and begda <= acdate.
    vargt = p0001-zzextrapto.
  endloop.
* if it’s empty then return **
  if vargt = ‘’. vargt = ‘**’. endif.
* fill the variable key
  perform fillvargt.
endform.

Since infotype 1 has already been read into memory by the time evaluation program RPTIME00, you don’t have to read it again within this operation. You simply loop through infotype 1 (the internal table P0001) where its effective dates span the time evaluation accounting date, field acdate. If the infotype 1 field (zzextrapto) is empty, then you return ** to the variable key (the variable key doesn’t accept spaces, so the default value is **). The standard form fillvargt is used to put the varg value into the rule’s variable key.

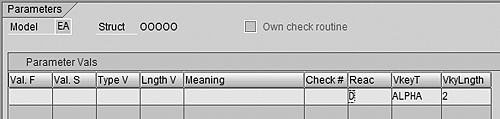

The attributes for a decision operation are different than what you saw in example 1. Figure 5 shows how the parameters are configured for this decision operation.

Figure 5

Defining parameter values for a decision operation in PE04

Example 2: A Custom Function for Benefit Accrual

Functions are easier to define than operations, but usually involve more complex ABAP programming. A function can process all the entries in a particular payroll table, the IT or RT for example, but an operation only has to be concerned with one wage type at a time.

Using a custom function for calculating a benefit accrual is a good example to show how the process works. Some companies calculate an accrual for the cost of employee benefits. This accrual is charged to the employee’s cost center as a debit. The credit then goes to a corporate expense for employee benefits. In this example, an accrual rate is multiplied by a wage base to get the accrual amount. Each combination of employee subgroup and personnel subarea (in this case, each labor union is in a separate personnel area) can have its own accrual rate. The number of possible rates is well over 100. For a smaller number of rates, you could set up payroll constants in V_T511K, and use those constants in a rule to calculate the benefit accrual. But given the number of rates in this case, a payroll function makes sense.

Before approaching the ABAP code or even the definition of the function in PE04, it is good to define the high-level calculation logic. This practice helps you determine which internal payroll tables need to be accessed, as shown in Table 3.

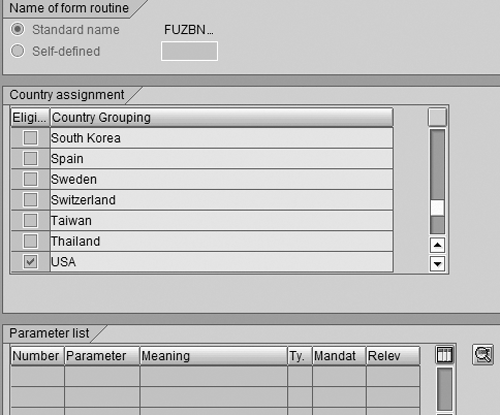

Unlike operations, functions do not have parameter models. They simply have four parameters that can be passed from the schema to the function. Each parameter value is stored in the “as”’ structure as as-parm1, as-parm2, as-parm3, and as-parm4. Figure 6 shows the definition of payroll function ZBNAC, which calculates the benefit accrual during the payroll calculation. My example function doesn’t require any input parameters.

Figure 6

Defining payroll function ZBNAC in transaction PE04

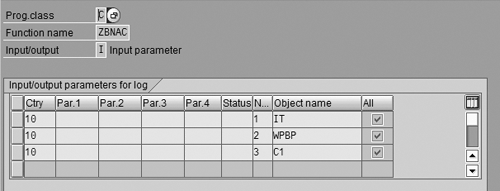

When defining a function, you can specify which internal tables are printed to the log before and after the function. For example, my function reads wage types from the IT and writes new ones to the RT, so it would make sense to print them to the log. It also creates an entry in table C1, so displaying that before and after the function’s processing helps users determine what the function changed in that table. The Input parameter button specifies which tables are printed in the input section of the payroll log, and the Output parameter defines those printed in the output section. Figure 7 shows the definition of input parameters. Earlier releases of SAP R/3 may not have these two buttons on the function/operation editor. In that case, simply maintain view V_T52BW instead.

Figure 7

Defining input parameters (tables) for a function

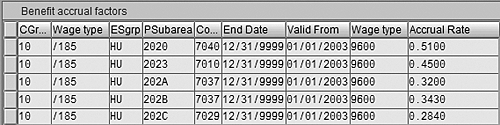

The first part of the actual ABAP development is to use transaction SE11 (Data Dictionary) to create a table to store the benefit accrual rates. In addition to the table definition, the table maintenance generator was used to create a maintenance view that can be used with transaction SM30 to maintain the rates (Figure 8).

Figure 8

The table maintenance view for ZHR_BEN_ACCRUALS

The BASE_LGART is the wage type that has the wage base for the benefit accrual, while ACCRUAL_LGART holds the wage type that carries the calculated amount to accrue for benefits. You also store the company code and controlling area because they are needed to create the entry in the C1 table. Those values could have been determined dynamically in the ABAP code, but putting them in the table makes the code simpler.

Now that you know which internal tables to access in payroll and you have the custom table to store the benefit accrual rates, you can write the ABAP code for the function. Using the employee’s personnel subarea and employee subgroup and each wage type in the IT, you search the data in ZHR_BEN_ACCRUALS (where the IT wage type equals the BASE_LGART). If you find an entry, then the “found” variable is set to “X.” Figure 9 shows the ABAP code used to calculate the accrual wage types for the ABAP function fuzbnac. As with payroll operations, this code goes into the include PCBURZUS0. (To save space, the ABAP code used to select the correct benefit accrual rate from ZHR_BEN_ ACCRUALS is not shown.) If you do find a rate, then the variable “found” is equal to “X.”

* zhr_ben_accruals was read with the company code, employee
* subgroup, and personnel subarea from the last wpbp split –
* along with the current wage type in the IT and the
* value of variable ‘calc_molga’
* if we found an entry in zhr_ben_accruals then create the accrual
* wage types, one for employee’s current cost center and one for
* cost center coming from zhr_ben_accruals.
    if found = ‘X’.
      it-lgart = zhr_ben_accruals-accrual_lgart.
      it-betrg = zhr_ben_accruals-ben_factor * it-betrg.
      it-betpe = zhr_ben_accruals-ben_factor.
* create wt without new cost center split – this will debit
* the employee’s cost center for the benefit accrual amount
      move-corresponding it to rt.
      collect rt.
* create wage type with cost center link, this will be a credit
* to the cost center coming from zhr_ben_accruals
* next_c1znr has the next split number for the c1 table
      rt-c1znr = next_c1znr.
      rt-betrg = rt-betrg * -1.
      collect rt.
      c1-c1znr = next_c1znr.
      c1-bukrs = wpbp-bukrs.
      c1-kokrs = zhr_ben_accruals-kokrs.
      c1-kostl = zhr_ben_accruals-kostl.
      append c1.
    endif.

When payroll is run with the log turned on, you obtain the output shown in Figure 10. In the Input section, you see the tables used as inputs to the calculation — the IT, WPBP, and C1 tables. The Output section shows the tables that the function changed — RT and C1.

Figure 10

Log display for function ZBNAC

Steve Bogner

Steve Bogner is a managing partner at Insight Consulting Partners and has been working with SAP HR since 1993. He has consulted for various public, private, domestic, and global companies on their SAP HR/Payroll implementations; presented at the SAP user's group ASUG; and been featured on the Sky Radio Network program regarding SAP HR.
