The PM authorization objects I’ll cover are:

• I_VORG_ORD: business operation for orders

• I_BETRVORG: business operation

• I_VORG_MEL: business operation for notifications

First I’ll give you some background information.

Authorization Checks

Security measures built into your SAP system are known as authorization checks. They minimize the ability of unauthorized personnel to access, manipulate, steal, modify, or delete sensitive data. When you begin to develop a PM authorization concept in accordance with your company’s security needs, you have to make some decisions regarding the required level of protection. You have to specify who is going to work with the PM module, what business transactions in the SAP PM area they can execute, and how to ensure that they can pass the authorization checks. In particular, you have to avoid assigning an unintentional combination of PM authorizations within a role or between roles that are assigned together. The standard PM module defines a variety of actions as business transactions. They are represented by a four-character key and a descriptive text.

Now, I will give you a detailed overview of the authorization management of the business transactions for the PM area, in terms of their relationships with PM internal orders, PM equipment and functional locations, and PM notifications.

When users work with sensitive data, you have to specify the user’s work area and restrict it. For example, if a user is working with PM orders, you have to restrict the business transactions (such as technically complete, cancel business completion, release, lock, or unlock). If the user is working with PM equipment and functional locations, you may want to restrict their ability to set or reset deletion flags. If they are working with PM notifications, you could restrict them to complete notifications, delete or reset a deletion flag, or print notifications.

My business scenario illustrates these three relationships:

1. The relationship between PM internal orders and authorization object I_VORG_ORD. Authorization object I_VORG_ORD has two fields, AUFART and BETRVORG. Field AUFART contains the order types and BETRVORG is the field in which you fill in the business transactions.


2. The relationship between PM equipment and PM functional locations and authorization object I_BETRVORG. Authorization object I_BETRVORG contains only one field, BETRVORG, for business transactions.


3. The relationship between PM notifications and authorization object I_VORG_MEL. Authorization object I_VORG_MEL contains two fields – one for notification types (authorization field QMART) and one for business transactions (authorization field BETRVORG).

PM Internal Orders

A business transaction can change an internal order. The reason to change a PM internal order might be, for example, if you want to change the status to Complete (technically) or to Complete (business). You complete a PM internal order technically once the maintenance work planned in the order has been performed. The order obtains the status “technically completed” and is marked as completed for PM. You perform a business completion of a PM order when you do not expect any further costs to be posted to the order. You first have to perform the Complete (technically) function and after that you can perform the business completion.

You create PM orders via transaction IW31 and maintain them via transaction IW32 or menu path Logistics>Plant Maintenance>Maintenance Processing> Order (Figure 1).

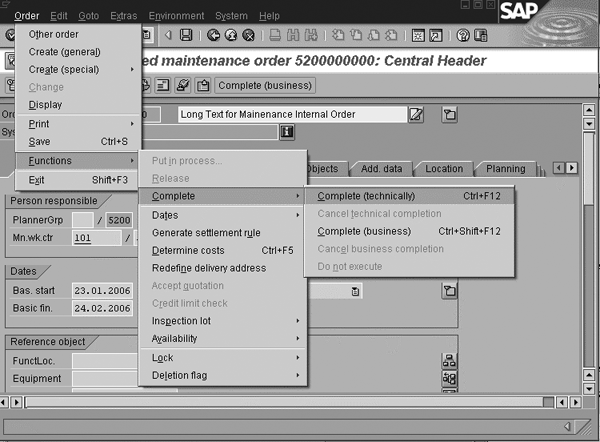

Figure 1

Transaction IW32 leads to the Change Planned maintenance order screen

Table 1 lists some business transaction codes in a standard PM order. This information relates to authorizations, because you insert all of the four-character keys for business transactions in the BETRVORG authorization field. The BETRVORG authorization field is not specific just to PM. The field contains business transactions (or business operations) and is available in authorization objects I_VORG_ORD, I_VORG_MEL, and I_BETRVORG.

The first column in the table gives the detailed path for changing the status of a PM order via transaction IW32. Here, you can quickly accomplish some business tasks that you perform frequently by pressing on one or more shortcut keys on the keyboard. The second column shows the shortcut key’s combination for some business transactions. The third column gives information about the business transaction four-character key. The description of the business transaction text is in the last column of the table.

If an SAP user changes a PM order, the system checks whether the corresponding business transactions are allowed for that user. The authorization object that you use for order processing within the PM area is I_VORG_ORD (Table 2). This authorization object has two fields for authorization — one for order type with technical name AUFART and one for business transactions. The technical name of the authorization field for a business transaction is BETRVORG. Authorization object I_VORG_ORD makes it possible to give authorization to a user for particular functions within the PM order only, depending on the type of the PM order. The I_VORG_ORD object contains the fields shown in Table 2.

Now I’ll illustrate this information with my three examples. Figure 2 summarizes all the discussed authorization objects I’m using in my examples. It shows the Profile Generator tool and the set of the business transaction codes. The Profile Generator (transaction PFCG) is a standard SAP tool that allows you to maintain authorizations for people who have different permissions in the system. Using it, you can configure job roles for users throughout the whole enterprise. Table TJ01 is the value table that contains all business transactions.

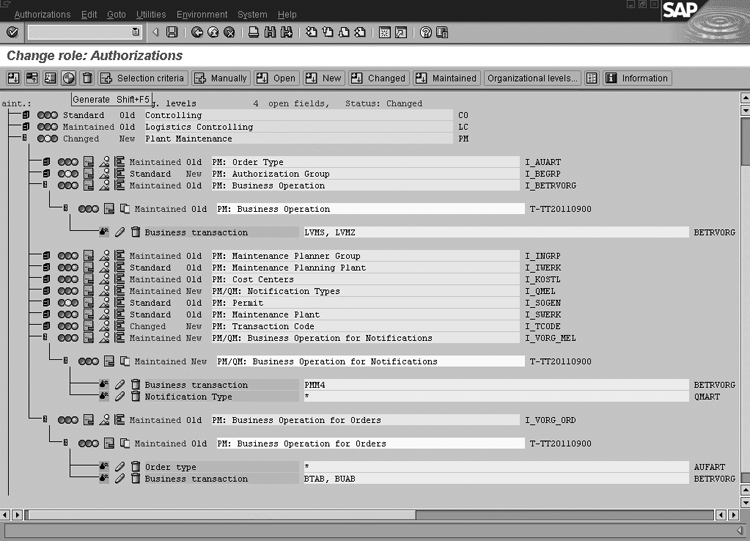

Figure 2

Change role: Authorizations screen for maintaining authorization profiles (transaction PFCG) click here to view a larger version of this image

Example 1

User PM_User1 is allowed to complete technical orders of all types and to cancel the business completion of all PM order types. The Complete (technically) business transaction code is BTAB, and the cancel business Complete (business) transaction code is BUAB. The authorization in the Profile Generator tool looks like what you see in Figure 2. It uses AUFART = * (all order types) and BETRVORG = BTAB, BUAB.

If you want to determine in the Profile Generator tool (Figure 2) which data sources are used in the value search for the F4 help on the authorization fields, use transaction code SU20 (Figure 3). Here I focus on the BETRVORG authorization field, which contains the business transaction codes. It is the field created specifically for managing the access to business transaction codes.

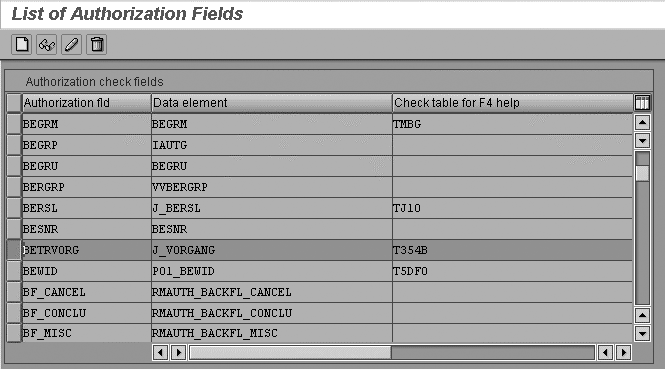

Figure 3

Maintain the authorization fields in the List of Authorization Fields screen (transaction SU20) click here to view a larger version of this image

Mark the row with the authorization field BETRVORG and click on the Display button (or use shortcut key F7). You can see in Figure 4 that BETRVORG is used in more than one authorization object. It shows that table T354B is the search help table for authorization values for business transactions in the Profile Generator tool. The BETRVORG authorization field is found in authorization objects I_BETRVORG, I_VORG_ORD, I_VORG_MEL, as well as in other objects from the Quality Assurance (QA) area.

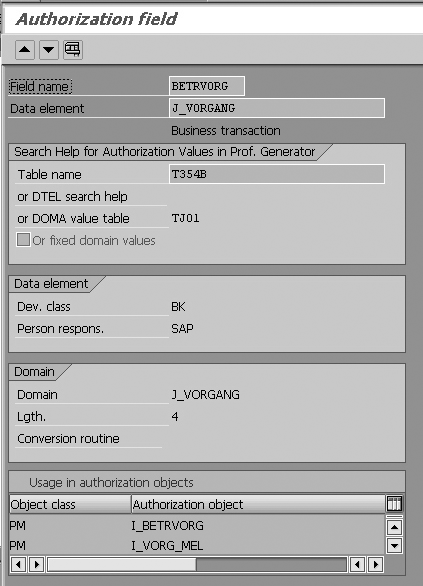

Figure 4

Display screen for maintaining Authorization Field BETRVORG (transaction SU20)

PM Equipment and Functional Locations

You use the check of authorization object I_BETRVORG when you work with PM equipment via transaction codes IE01 (create equipment), IE02 (change equipment), or PM functional locations via transaction codes IL01 (create location) and IL02 (change location). Authorization object I_BETRVORG contains only one field, which is BETRVORG, as shown in Table 3. As I mentioned, the BETRVORG authorization field is the place where you put business transactions if you want to perform an authorization check.

Tables 4 and 5 list business transactions in a PM functional location, which is an organizational unit within logistics (transaction IL02) and in a PM equipment location, which is where a maintenance task is performed (transaction IE02). Often you hear users say they could not perform the business transaction “set deletion flag” but they do not specify the business transaction code. The security operator has to guess the code of the business transaction. To avoid that situation, you can use the information in Table 4.

The first column of the tables shows the complete path for the relevant business transactions in transactions IL02 and IE02. The second column gives the four-character key for business transactions, and the last column describes the business transaction’s text.

Example 2

User PM_User2 is allowed to set and reset deletion flags for PM equipment and locations. Remove or set the deletion flag in the system via business transactions LVMZ or LVMS, respectively. If you want to remove equipment or locations from the system, you have to set the deletion flag. The authorization for authorization object I_BETRVORG in transaction PFCG looks like what you see in Figure 2: BETRVORG = LVMS, LVMZ (mark for deletion, remove deletion flag).

PM Notifications

You use authorization object I_VORG_MEL when you check the access to business transactions in PM notifications (transaction IW22). AUTHORITY-CHECK is an ABAP command used to perform authorization checks in programs. Before accessing the database, the user should carry out an authorization check, which is implemented in the ABAP program. All that is done because the access protection system must ensure that only authorized individuals have access to the system and to particular data.

PM notifications document the work that has been performed, such as maintenance tasks. They are available for future analysis. It is important to authorize this function for precise application security concerning authorization and to protect execution of PM business transactions against unauthorized access. Table 6 shows that I_VORG_MEL contains two authorization fields: BETRVORG and QMART. With this object you can control which users can perform which functions for the notifications. The I_VORG_MEL object contains the fields shown in Table 6.

Table 7 lists business transactions in a PM notification. The first column shows the detailed path, the second gives some shortcut keys for access, and the last two columns refer to the business transaction’s codes with the corresponding text. A user can enter maintenance notifications for functional locations and for equipment. The data of PM notifications is transferred to history and is of importance for future planning.

Example 3

User PM_User3 is allowed to complete notifications of all types. Execute the complete notification authorization via business transaction PMM4. The authorization in the Profile Generator tool looks like this: BETRVORG = PMM4 (complete notification) QMART = * (all notification types), as shown in Figure 2.

Implementing the Authorizations

Figure 2 shows the whole scenario including examples 1, 2, and 3. It gives a view of the Profile Generator tool that aids in managing user authorizations. To find the appropriate authorization management customizing activities follow the IMG menu path Implementation Guide For R/3 Customizing (IMG)>Plant Maintenance and Customer Service> Basic Settings>Maintain Authorizations for Master Data or the Profile Generator tool (transaction PFCG).

It is important after making any change in the Profile Generator tool that you save and generate before exiting. The save icon is on the application toolbar in Figure 2. You can use the generate icon to generate the authorization profile. Figure 2 depicts all the authorization settings that you must assign to users for my examples. After generating you can be sure that the users of this authorization profile have the proper rights for accessing business transactions in the PM area.

Maria Nikolova

Maria Nikolova has worked as a senior SAP expert for the National Electricity Company (NEK) in Bulgaria since January 1999. Maria has a master’s degree in telecommunications as an engineer from the Technical University in Sofia, Bulgaria. She has experience with an MIS project implementation of SAP R/3 (headquarters and rollout), the authorization concept and user administration, SAP Customer Competence Center (SAP CCC) , SRM, and the SD, HR, CO, Asset Management (AM), MM, and PM modules. Prior to joining NEK, she worked as a manager of Equipment Engineering Ltd. for four years.
