When configuring a movement type using transaction OMJJ to set the field status group, you miss the similar field status group for the G/L account configured using transaction OBC4. To help resolve these issues, SAP provides standard report RM07CUFA to help analyze the inconsistencies. I’ll show you how to use this report to update field selections, and also explain in greater detail the considerations you need to take into account when adjusting the configuration.

Consider the following scenario: The Financial Accounting (FI) General Ledger (G/L) team has decided that profit center should be a compulsory account for material consumption accounts. When a user performs a goods receipt using movement type 501, goods issue (GI) receipt without purchase order (PO), they receive error message Fld selectn for mvmt type 501/acct 400020 differs for Profit Center (042). Note 042 indicates the profit center fields are controlled by the forty-second position in the raw data display of field T156B-FAUSN.

What should your next step as an analyst be? To resolve this message you need to know the field selection for a movement type. First I’ll explain what MM field status is and how it interacts with FI field status. Then I’ll show you how to quickly identify and correct any inconsistencies.

MM Field Status

When you post an MM document certain information is required to process the transaction, such as plant, storage location, and material. Additional information can be required of an MM transaction (e.g., movement type 201 requires a cost center). The field status group controls what information is required to complete an MM transaction.

To configure MM field status, use transaction OMJJ and select the sub-dialog Field selection (from 201)/Batch search procedure (Figure 1). The text (from 201) means it applies to movement types from 201 to 999 only, not to the purchasing goods receipt transactions 101 to 199. One entry per special stock indicator is active for each movement type. Double-click on the appropriate entry to see the field status group overview (Figure 2).

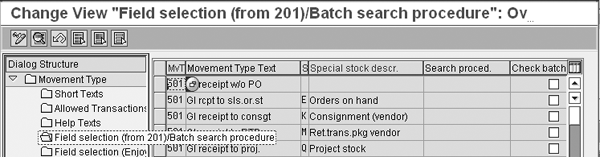

Figure 1

Transaction OMJJ for movement type field selection update

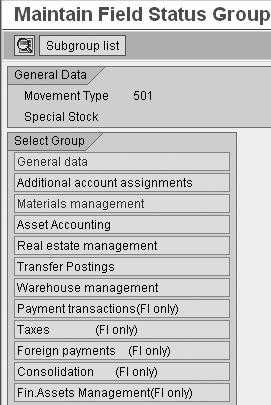

Figure 2

Transaction OMJJ detail after you double-click on the movement type

The field status groups break the individual fields in the MM document into logically related groups. Double-click on a group to see the full field details (Figure 3). If the field status group name is in blue it means at least one field in the group is optional or required; if it is black then all fields are suppressed. The text (FI only) refers to fields that are only used in FI, but you may need to update these settings if you run into the error messages I have discussed.

Figure 3

Transaction OMJJ field status group update for Additional account assignments group

The field status group detail shows the settings for individual fields such as Profit Center. The options Suppress, Req. Entry, and Opt. Entry control the field status during MM document entry for the specific movement type. You can use the page up and page down keys to navigate between pages. Sometimes a single row in the field status group can refer to more than one field in the MM document (e.g., the Sales order option controls the sales order document and sales order item fields). Use the Field check button in Figure 3 to see which fields a single setting controls.

The settings in the OMJJ sub-dialog Field selection (from 201)/Batch search procedure do not apply to SAP Enjoy transaction MIGO (goods receipt with a purchase order). Instead you need to enter the field for which you want to change the status in the sub-dialog Field selection (Enjoy) shown in Figure 4. Note the SAP Enjoy logic applies to all movement types from 101 to 999. It has no special text, as opposed to Figure 1, which says from 201.

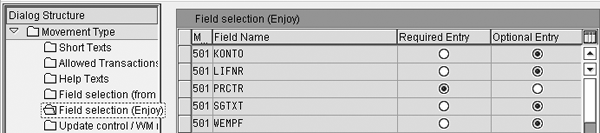

Figure 4

Profit center PRCTR added as a required field for SAP Enjoy transactions

FI Configuration

Now that I have discussed the configuration for MM field status group, you know the error messages occur due to an inconsistency between MM and FI field status groups. FI has two field status groups, one for the G/L account and one for the posting key (Table 1).

OBC4: G/L Account Field Status Group

Each G/L account is assigned a field status group. You can display the field status group assignment with transaction FS03 (Figure 5).

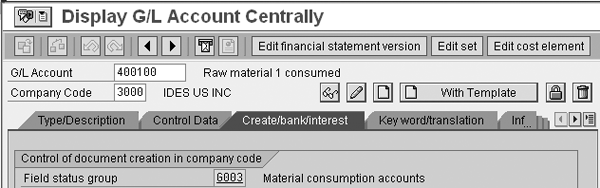

Figure 5

Field status group assignment for a G/L account

An FI field status group is not unique. You need to know its field status variant. Click on the drop- down arrow next to Field status group G003 or press F4 for help. Then the field status variant 1000 is displayed at the top of the selection list (Figure 6).

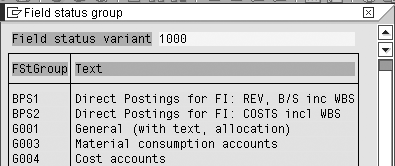

Figure 6

Find the field status variant for a field status group

You can find the details of the FI field status groups with transaction OBC4. Select the correct Field status name and then double-click on the Field status groups folder in the Dialog Structure to display the Change View Field status groups: Overview screen (Figure 7). From there you can drill down to a screen similar to Figure 2, then proceed to Figure 3 to set the options for suppressed, required, or optional entry control.

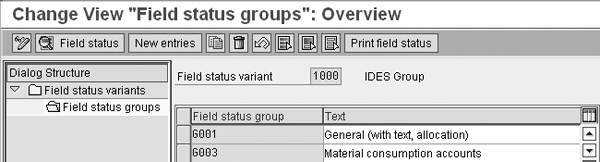

Figure 7

Transaction OBC4 field status group overview

OB41: Posting Key Field Status

In FI there is also a field status setting for each posting key, which is configured using transaction OB41 (Figure 8). The FI posting keys relevant for MM transactions are 80 to 99. In this transaction double-click on the posting key to go to the detail screen. In the detail screen click on the Maintain Field Status button to see a screen similar to the MM Maintain Field Status Group: Overview screen in Figure 2. From there you can drill down to set the options for suppressed, required, or optional entry control, similar to the MM Maintain Field Status Group: Detail screen in Figure 3.

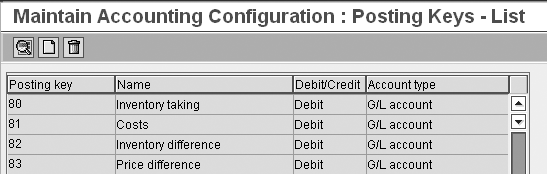

Figure 8

Transaction OB41 configures FI posting keys

If you need to review the settings at a more technical level, see Table 2, which shows the tables where the three field status group settings I have introduced earlier are stored.

When the raw data in these tables is displayed using transactions SE16, SE16N, or SE17, the field selection string appears as a set of plus (+), minus (-) and period (.) characters (Figure 9). You can interpret the raw data characters using the descriptions in Table 3.

Figure 9

Raw data display of field selection string

Invalid Combinations

I have discussed the configuration for MM field status group and error messages that occur due to an inconsistency between MM and FI field status groups. Table 4 shows the logic SAP applies to the comparison of the MM movement type and FI G/L account field status group settings. Table 5 provides additional detail on the four combinations that cause errors. Analyze your own business scenarios before proceeding with the possible corrections suggested.

Error Report

Now I will introduce a report to quickly identify and correct any inconsistencies. You can use report RM07CUFA (Field Selection Comparison: Movement Type G/L Account) to identify the field selection string errors. See SAP Note 9281for more information. Enter the data from the error message Fld selectn for mvmt type 501/acct 400020 differs for Profit Center (042) into the selection screen of RM07CUFA.

Execute the report and it highlights conflicts between MM and FI field status groups (Figure 10). To execute the report, populate the selection screen and click on the execute icon.

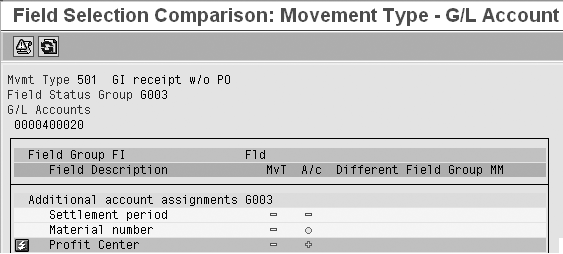

Figure 10

Field status group error found for profit center field

To change the field status group with transaction OMJJ or OBC4, click on the appropriate symbol for the row in error. The left symbol with the header MvT is the MM field status and the hotspot links to transaction OMJJ. The symbol on the right hand with header A/c is the FI G/L field status and the hotspot links to transaction OBC4. In both cases, a screen similar to the MM Maintain Field Status Group: Overview screen appears as shown in Figure 2.

Click on the error log icon of the main report output to take you to a summary list of all errors (Figure 11). This is useful as the report has a long list of field status groups you have to scroll through.

Figure 11

Error log for report RM07CUFA

In this case the error is resolved by making profit center a required field in the MM movement type 501 field status group. This was done by clicking on the - symbol for Profit Center in Figure 10, going to the Field Status Overview, double clicking on the Additional account assignments group, and then setting the required entry option for Profit Center.

Issues with RM07CUFA

Report RM07CUFA is very useful but you cannot resolve all issues directly form this report. There is no link to OMJJ sub-dialog Field selection (Enjoy), so you need to enter OMJJ directly to update configuration for SAP Enjoy transactions.

The report does not compare settings for FI posting keys. Usually this is not an issue as the MM relevant posting keys 80 to 99 have default settings with nearly all fields optional, which allows all field data to pass through. If there is an issue with the posting key field status group you see the error message Rules for posting key 91 and acct 400020 set incorrectly for PRCTR field.
