Thank you for the question. Many factors are involved in deciding which reporting tool to use. Some of the key factors may be your reporting strategy, underlying technology, IT infrastructure of the organization, data volume, report presentation, content and focus of data, data usage, and business communities served. Also, some factors may be specific to your company — type of industry, organizational structure, and cultural background.

When it comes to reporting CO-PA information, you should consider three common approaches:

• Reporting in BW only
• Reporting in CO-PA only
• Reporting in CO-PA and BW

BW Reporting

SAP's future trend is to move all analytical and strategic reporting into BW because of its inherent technological advantages. The R/3 system acts as an online transaction processing (OLTP) system, whereas BW is an online analytical processing (OLAP) system. This means that the underlying processor that executes the commands in each system was designed for two distinct purposes. R/3 is designed to execute transactions, such as sales order creation, whereas BW's processor is meant to analyze data. BW supports complex reporting requirements including cross-application reporting, and it provides significant reporting performance improvement, especially with large data volumes.

CO-PA Reporting

The CO-PA module within the R/3 system allows you to design and develop CO-PA drill-down reports within the SAP R/3 system. Its reports provide profitability information — for example, gross-margin analysis for characteristics such as customers, product lines, regions, and combinations of these characteristics. Since the CO-PA reports reside within the SAP R/3 system, these reports provide real-time profitability information, which may be vital for some industries.

CO-PA and BW Reporting

A third approach is to use both reporting engines concurrently. Although BW is the more powerful reporting tool, CO-PA also offers many useful reporting features, including drill-down, slice-and- dice, sorts, and exceptions. A clever combination of CO-PA and BW may offer the optimal reporting option with the maximum use of existing reporting investments.

Let me elaborate on these options and then I'll highlight the characteristics of CO-PA in OLTP systems and BW in OLAP systems. I'll also examine the CO-PA and BW technical structures.

Characteristics of OLTP and OLAP Systems

To appreciate the strengths of each system, you must first understand the typical characteristics of OLTP and OLAP systems, as shown in Table 1. In this example, CO-PA falls within the OLTP system, whereas BW is an OLAP reporting tool.

BW's strengths make it the more powerful OLAP tool for consolidated reporting for the whole organization. However, costs are associated with transferring data from source systems to BW. Just because BW offers very flexible reporting tools, it may not be advisable to move all reporting to BW. In fact, you might be better off keeping some level of profitability reporting within CO-PA. One of the advantages of this approach is that you can get real-time profitability information from the SAP R/3 system.

BW and CO-PA Characteristics

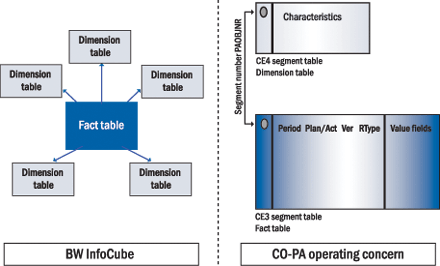

Figure 1 describes the BW and CO-PA structures.

Figure 1

Technical features of BW and CO-PA structures

An InfoCube, BW's most basic component, is a set of tables arranged in the shape of a star. BW's central table, the fact table, is in the center and several dimension tables surround the fact table. This design is aptly called a star schema. The fact table stores all key figures and the dimension tables store the characteristics for analyzing and reporting the relevant facts in the fact table. For instance, in a report on sales credits for the consumer products division in the month of August, the number of sales credits is a fact — or key figure. The consumer products sales org and month are the characteristics that describe the sales credit amount.

In CO-PA, an operating concern primarily consists of segment tables and segment levels. Segment table CE4 stores the characteristics and segment level CE3 stores the totals of the value fields by fiscal period. Segment number PAOBJNR joins these two tables.

An operating concern in CO-PA is represented by its segment table and segment level. Segment table CE4 stores the valid combinations of characteristic values. Segment level CE3 stores the totals of value fields. CE3 also has columns for period, plan/actual, and record type. In simple terms, CE3 stores period- related totals. An InfoCube in BW consists of the fact table in the center surrounded by dimensions tables.

Characteristics in CO-PA match characteristics (or attributes) in InfoCubes. You can view value fields as key figures.

Summarization levels for an operating concern play the role of the aggregates in an InfoCube. Aggregates and summarization levels are pre-summarized data. Using pre-summarized data reduces the volume of data to be read from the database, speeds up query execution time, and therefore reduces the overall load on the database.

CO-PA line items can be compared to lines in BW's Operational Data Store (ODS). The ODS stores transaction data in relational database tables.

As I noted, many factors are involved in deciding which reporting tool to use, and many of these may be specific to your organization. Table 2 shows a summary of some of these factors that you should consider when choosing the CO-PA reporting tool.

It is important to fully evaluate these factors so that you can get the most out of your reporting tools, be it CO-PA or BW, or, under certain situations, a combination of both tools. For example, for fairly simple profitability reporting you would use CO-PA. If your requirements demand more flexible reporting across a multiple-system landscape, you would use BW. Finally, for real-time profitability reporting with complex reporting requirements, you would use a combination of CO-PA and BW.
