Area menus have been a part of standard SAP since the earliest release. They allow you to simplify access to custom applications. You enhance them or design new ones to group similar customizing and reporting-related activities that are specific to your enterprise.

Say the implementation or maintenance team members are tasked with designing a custom application or are asked to enhance standard SAP functionality. This may result in creating new configuration steps, reports, or programs, for example. For convenient access, maintenance, and execution, you could put all these activities — and their respective transaction codes — in an area menu. Or, if your application adds additional features and functionality to an existing area, you could include your new area menu in the standard SAP area menu.

I’ll introduce two methods you can use to create area menus, and then highlight some tips for using them. I’ll also list some helpful references to consult when designing area menus. The screenprints in this article are based on an SAP NetWeaver 2004s system running SAP ERP Central Component (ECC) 6.0. However, the concepts presented are general in nature.

Area Menu Maintenance

You can use two different approaches to maintain area menus. The first approach is the non-technical, standalone approach to area menu maintenance. You create or edit the area menu you are interested in and you are not required to know much technical information.

Run transaction SE43 or SE43n, which takes you to the screen that lets you create, maintain, copy, and delete area menus (Figure 1). After you enter the technical name of the area menu, a pop-up window appears that is pre-populated with the technical name of the area menu. Enter a meaningful description and then press Enter. This takes you to the area maintenance creation screen as shown in Figure 2.

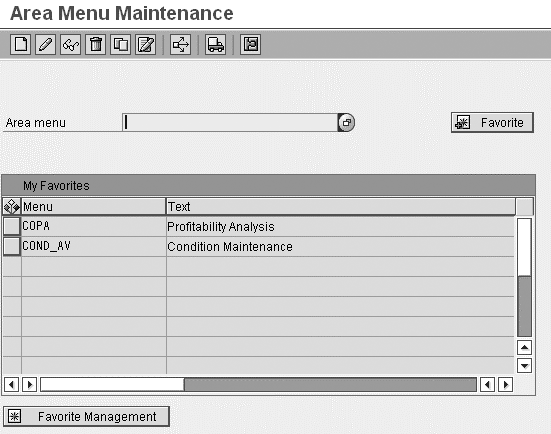

Figure 1

Area menu initial screen via transaction SE43 and SE43n

Figure 2

Area menu maintenance

It is very easy to add nodes and sub-nodes — all you need to do is go to the Edit menu item, choose Insert menu Entry, and then insert the desired item as a node or a sub-node. You can also select Reference to Another Area Menu to insert a reference to another area menu.

The second approach is what I call a more technical and integrated approach. This is the preferred approach for developers who usually use Object Navigator to create and maintain objects in their SAP systems. It is advantageous in that it allows you to create area menus within the context of other related developments and is therefore a more integrated approach. The one prerequisite to using this method is that you need to specify the name of a package (formerly known as development class). Here are the steps you need to execute for this method:

Step 1. Run transaction SE80. This takes you to the Object Navigator Workbench.

Step 2. Click on the Repository Browser tab. Select Package from the drop-down menu for the object category.

Step 3. Enter the name of the package in which you want to create the new area menu — for example, ZCUST1. Click on the display icon .

Step 4. Highlight the package name and right-click to access the context menu. Follow menu path Create>More>Area Menu. A pop-up window prompts you to provide a technical name and a short description for your area menu. Press Enter to go to the area maintenance creation screen shown in Figure 2 and follow the described process to add nodes and sub-nodes.

Now that I’ve shown you where to go to create area menus, let me share some tips for using them.

6 Tips for Using Area Menus

Tip 1. You can save your most frequently used area menus. Click on the Favorite button in Figure 1 each time you specify the name of an area menu in the maintenance mode. As you can see, I saved a couple of the area menus that I use frequently. Next time, all I need to do is double-click on the desired item from the list of My Favorites.

Tip 2. Display transaction codes in the area menus. Transaction codes are indispensable — displaying them is good for printing and for taking screenprints. Also, if users cannot run certain transactions in an area menu, they need to provide the transaction code to the security administrator.

The toggle switch in Additional Information>Transaction Code Display On/Off allows users to toggle their view of the transaction codes for each activity in the area menu maintenance screen that is displayed once you carry out the steps outlined earlier for either of the two methods. Figure 3 shows an example for the SAP standard user menu COND_AV in which the Technical Key column shows the transaction codes.

Figure 3

Toggle between transaction code display on and off

Tip 3. Note the Buffering active flag. When you select Goto>Attributes in Figure 3, a pop-up screen appears that lists the technical attributes of the particular area menu. Pay extra attention to the Buffering active flag at the bottom of the pop-up screen, as shown in Figure 4. The area menus are relatively stable entities, so SAP allows you to buffer these in an effort to improve performance. When you buffer the area menus, the system does not have to retrieve the server version each time you access it.

Figure 4

Buffering of area menus

Tip 4. Your security administrator needs to set up access to the area menu. Creating a user menu does not mean that other users have automatic access to it. To roll this out to the appropriate groups of people, you need to use SAP’s role-based security setup. Basically, you must include the area menu in a role, which you in turn assign to the user in the user’s profile maintenance. This is the SAP security administrator’s domain, so you’ll need to enlist this person to carry out all of the security-related steps.

Tip 5. Important tables for area menus. A few important tables in your SAP system (regardless of the release you are on) contain information pertinent to area menus. These are TMENU01, TMENU01R, and TMENU01T. They contain an abundance of technical information about area menus. For example, table TMENU01 stores information relevant to the hierarchy of area menus — all in the form of technical IDs such as the ID of the parent, child, and sibling nodes. TMENU01R is a very useful table that among other things contains the referenced information of each of these nodes (e.g., what transaction codes each node points to and what kind of transaction it is). TMENU01T is the text table for area menus and contains the text for each of the nodes in your area menu.

Tip 6. You can transport area menus to other systems. The cleanest way to do so is by clicking on the transport icon on the initial area menu screen shown in Figure 1. This ensures that all components of that particular area menu are transported. When you click on this icon, the system prompts you for a change request or a transport number. Provide a suitable change request or transport number. Note that if you have saved your area menu as a local object, you are not able to transport it.

Important References and SAP Notes

Good documentation on area menus is available at the SAP Help Portal at https://help.sap.com/saphelp_nw70/helpdata/en/a3/5fc53796421e38e10000009b38f842/frameset.htm. Here you can find details about area menu maintenance and related topics.

You will find several SAP Notes if you search on “area menus” in the SAP Service Marketplace. For your convenience, Table 1 provides a list of four SAP Notes that should help you enhance your understanding of different features of area menus.

After you set up area menus and grant the proper authorizations to the transaction codes, you can use them. Flexibility is one of the key features of area menus — you can enhance both SAP-delivered area menus and your customized ones on an ongoing basis or design new area menus.
