SAP presents few options for performing delta loads to BW from R/3 master or transactional data for which no Business Content extractors exist. This could be data from R/3 standard tables or from one of the several Z-tables you have in your R/3 system. You might typically extract this type of data as a full load nightly or monthly, or you might do a delta load based on timestamps. Neither method performs a true delta load, however. A full load captures all changes, but it is inefficient because it transfers a lot of data unnecessarily. A delta update using timestamps can only identify new records in a table and cannot be used if the existing (old) records change or if no timestamp is in the table, which is the case most of the time. To achieve a true delta load for the described circumstances, you should use Application Link Enabling (ALE) message types. Several of SAP's standard Business Content extractors use ALE message types to delta-enable their extractors; most of these are master data extractors. As you might have discovered, SAP has not documented how to perform a delta load using ALE without a standard extractor. I've discovered the secret through a lot of trial and error. What I've learned follows, and it applies to both BW 2.x and BW 3.x.

Building an ALE-Based Extractor

ALE controls messaging across loosely coupled R/3 systems, ensuring that data is always consistent. It is also used to exchange data between R/3 and non-R/3 systems. You can use ALE message types during delta updates to capture changes and new records for R/3 master data tables and also the tables that log changes in change document history. With this method, you can also capture changes to transaction data tables. You have two ways to build an ALE-based extractor and set up the delta. I will walk you through each one. The first method is used mostly for extracting data from a single table. I call this the semi-standard method because it does not require custom code, just some non-standard configuration. The second method can extract data from more than one table, including transaction data tables. This is the custom method. You set up everything yourself and write custom code to populate the extract structure.

Option 1. The Semi-Standard Method

Say that you want to extract sales order header data from R/3, and your extractor needs to have delta capability. (SAP provides Business Content extractors to do this, but for demonstration purposes, assume that they don't exist.) Before this extractor can be built you must:

• Identify the fields and tables that need to be extracted to BW

• Create the view joining those tables, if you need data from multiple tables

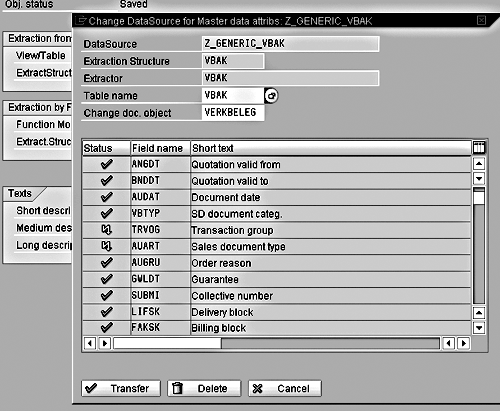

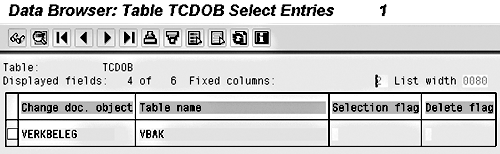

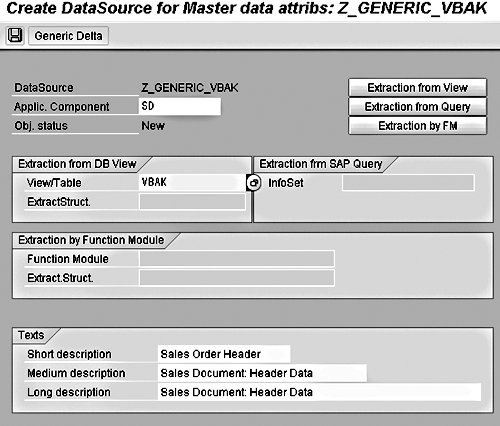

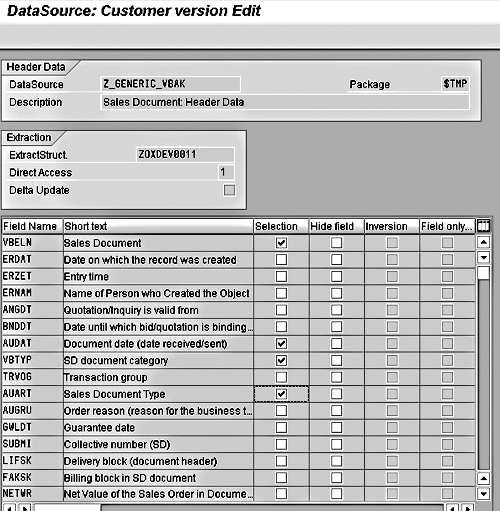

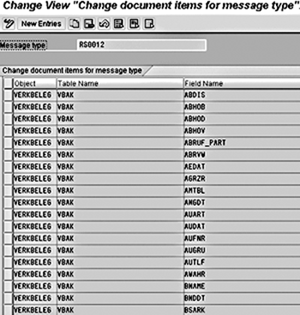

To begin building the extractor, go to transaction code RSO2. My example requires data only from the VBAK table (Sales Order Header). Create a custom DataSource — e.g., Z_GENERIC_VBAK. Give the extractor a description and save the DataSource. Select Generic Delta in RSO2 (Figure 1) and make sure you choose Numeric Pointer as the delta method in the following screen; do not select any fields. Save the DataSource. On the next screen, select the data fields and generate the DataSource (Figure 2). You may choose to hide some fields if you do not need them in the extract structure.     To set up the delta functionality, you need to identify the Change doc. object. All standard change document objects are listed in table TCDOB. Go to the table entries screen for table TCDOB (transaction code SE16). Enter the name of the table used to build the generic extractor — VBAK in this case — and execute. Figure 3 shows that the Change doc. object for table VBAK is VERKBELEG.   Go back to transaction RSO2 and select ALE Delta from the DataSource menu. In BW 2.x, the menu option is called Set up Delta. Enter the table name and Change doc. object in the pop-up box, and press the Enter key. You should now see the screen shown in Figure 4. Notice that some fields are checked in green in the status column. The system keeps track of any value changes or additions to these fields in the change log. Click on Transfer to activate the delta setup for the DataSource.   Once the DataSource is generated, it has to be replicated in the connected BW system. Create an InfoSource and assign it to this DataSource. Activate the new InfoSource. The sidebar, “How ALE Message Types Work with Delta Extractors,” explains what happens behind the scenes when you create a delta-enabled extractor using ALE change pointers. This will also be helpful when I describe the second option.

Option 2. The Custom Method

The custom method is most useful (almost necessary) when the delta mechanism demands more complex logic like accessing more than one table than specified in the DataSource. It works only for the tables that have change document objects where the fields in the tables are enabled for change management. If you are unsure whether a field has been enabled for capturing changes, execute transaction code SE11 and click on Further Characteristics for your data element. Make sure the Change document option is checked.   1. Create an ALE message type (see the sidebar on page 18) 2. Create a function module with the data extraction logic 3. Create a custom DataSource that uses extraction method F1/F2 4. Update entries in the ROOSOURCE, ROOSFIELD, and ROOSGEN tables

1. Create an ALE Message Type

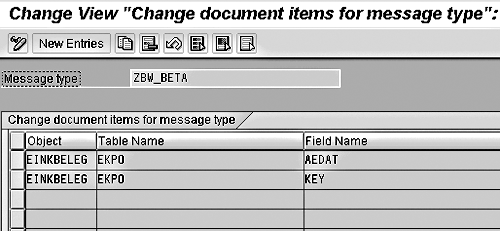

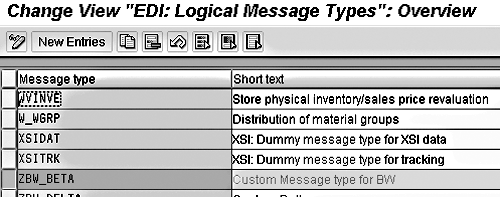

Before creating the ALE message type, you need to know the fields and tables where ALE pointers are activated. See the sidebar for more information. Go to transaction code WE81 to create the ALE message type (Figure 5). Activate the change pointers to fields for which delta changes are to be captured. To do this, go to the transaction code BD52. Enter the name of the custom message type, ZBW_BETA, created in the previous step. Create a new entry by entering the appropriate message type, change document object, and table and field names (Figure 6). Obtain the change document object using transaction SE11 and table TCDOB.       Check the active indicator for the new message type in transaction BD50 and save the entry for the new message type. This activates the change pointers for your new message type. You have now successfully created an ALE message type for BW. In the following steps, you will learn how to use this new message type in the custom extractor.

2. Create the Extractor

First, create the extract structure — called ZOXED10010 in this example — using transaction code SE11. This structure includes all the fields that need to be extracted from one or more tables (Figure 7). Enter all the fields that need to be extracted by the extractor.

• The extractor in this case is an API function module that:

• Accesses the data from more than one table

• Prepares the generic data packets

• Runs the full/initial loads

• Gets the delta changes from ALE tables

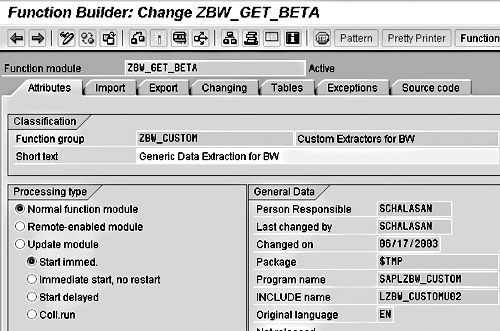

You or your technical team create this function module based on the extraction logic of SAP function RSA3_GEN_GET_DATA (Figure 8). Use the extract structure you just created in the function code. Sample code (Extractor Source Code) for this function module is available for download at the bottom of the article.     This custom module is designed to give full and intermediate delta loads. It uses the SAP function CHANGE_POINTERS_READ to give all changes for delta requests. The change-pointer read function gives mainly the table keys for any new purchase-order numbers and changes to existing numbers based on the change pointer you defined. Based on these keys, you need to gather and process other data necessary to fill the extract structure defined in the previous step. The other data could be from another table or could just be a subset of the data from the same table.

3. Create a Custom DataSource

This important task generates the extract structure. To create a custom DataSource that uses extraction method F1/F2, first create the DataSource using transaction code RSO2. Follow the steps described in Option 1 of this article to create the DataSource. This time, you are going to create a DataSource for master data. You may use any database table to create it — EKKO, for example. Save and generate the DataSource. This step creates the entry in table ROOSOURCE and other interfaces to IDocs. Go to ROOSOURCE and locate your custom DataSource, ZBW_BETA1. Notice that the DataSource uses the extraction method V and the EKKO extractor. You need to replace the:

• Extraction method V with F1
• Extractor for EKKO with function module ZBW_GET_BETA
• Default extract structure with ZOXED10010, which you created earlier

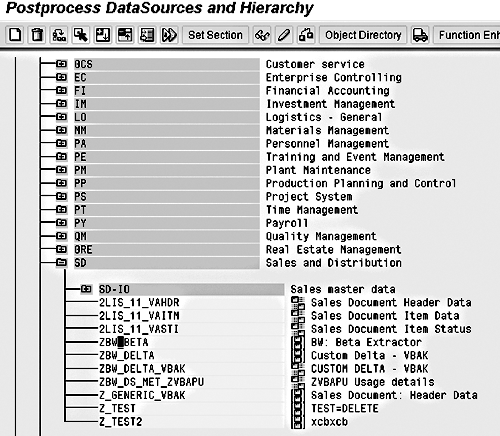

You can carry out the above steps directly in ROOSOURCE if the Basis settings permit you to do so. Otherwise, run the Update ROOSOURCE program available at the bottom of this article. Having made the changes, you now need to generate the DataSource. Go to transaction code RSA6 and locate your custom DataSource. Select it and click on the Change button to generate it. The system takes you to the screen where you can see all fields available in the extract structure (Figure 10). You can enable some as selection fields, which can be used later in the InfoPackage for selective data loads.

4. Update Entries in the ROOSOURCE, ROOSFIELD, and ROOSGEN Tables

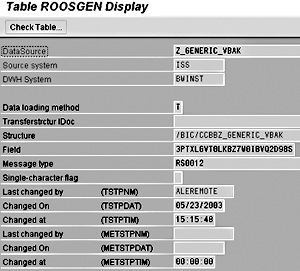

If you do not see any fields selected, that means all the fields are hidden in the ROOSFIELD table. Just save the screen and exit. Go to the ROOSFIELD table using transaction SE11 to unhide the fields for that extract structure. Again, changing the settings in the ROOSFIELD table depends on Basis settings. If the ROOSFIELD table is closed for changes, use the Update ROOSFIELD program to execute the changes. The program is available at the end of the article. After carrying out the necessary changes, go back to RSA6 to generate the DataSource. Now the custom DataSource is ready for use. Log into BW and go to the Source Systems tab in Administrator Workbench. Replicate the DataSource you created in BW. You should now be able to see the custom DataSource in the application component you created. Assign this DataSource to an InfoSource. Activating the InfoSource generates an entry in the ROOSGEN table for this DataSource. If Basis/system settings stop you from editing entries in this table using the standard table maintenance methods, use the Update ROOSGEN program available at the end of the article.
