In general, all master data is maintained in a specific SAP ERP Human Capital Management (SAP ERP HCM) system. Once a change occurs in this system, the data needs to be disseminated to other associated SAP ERP HCM systems. HR Triggers in Access Request Management provide the means to automatically transfer the changes from the SAP ERP HCM system to other systems. When an event is triggered in the SAP ERP HCM system, such as hiring a new employee, rules are applied along with its corresponding HR Trigger. The rule and HR Trigger initiate an action for the Access Request Management module to create a request for system access.

HR Trigger is a solid feature in SAP Access Control 10.0 that is underutilized because of complexity in configuration and a lack of information around use of the functionality. I walk you through a step-by-step process for HR Trigger configuration and use. I cover integration of SAP Access Control 10.0 Service Pack 11 with SAP ERP HCM 7.3 (the latest version of both SAP Access Control and SAP ERP HCM at the time this article was written).

Step 1. Install a Foundation Component on SAP GRC and Plug-In Components on SAP ERP HCM

To enable HR Trigger functionality, you need to install GRCFND_A (an SAP GRC Foundation component) on SAP Access Control, and the matching GRCPINW and GRCPIERP plug-in components on the SAP ERP ERP HCM system.

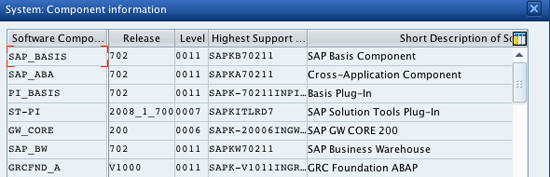

Figure 1 shows the GRC system (SAP Access Control, SAP Process Control, and SAP Risk Management) with GRCFND_A installed.

Figure 1

Components in the SAP GRC system

Figure 2

Plug-in components in the SAP ERP HCM system

Step 2. Set Up the SAP Access Control and SAP ERP HCM Systems

Execute transaction code SM59 and make sure that the Remote Function Call (RFC) destination for the SAP Access Control (I refer to my SAP Access Control system as GRDCLNT100) and SAP ERP HCM (I refer to my SAP ERP HCM system as HRDCLNT100) systems is created in the SAP GRC and SAP ERP HCM systems, and that the RFC destination names are the same in both systems (Figure 3).

Figure 3

The RFC destinations of GRDCLNT100 (for the SAP GRC system) and HRDCLNT100 (for the SAP ERP HCM system)

In Figure 4 you can see that SM59 in HRDCLNT100 shows RFCs for GRDCLNT100 (GRC system) and HRDCLNT100 (HR system).

Figure 4

RFCs for GRDCLNT100 and HRDCLNT100

The entire configuration required for HR Trigger is done in the IMG (transaction code SPRO) in the SAP GRC and SAP ERP HCM systems.

Step 3. Set Up Connectors in the SAP GRC System

To set up connectors in the SAP GRC system use transaction code SPRO. Finish the connector-related IMG configuration for SAP ERP HCM in the SAP GRC system. Connector configuration is required to connect the SAP GRC system to any target system (SAP or non-SAP), so it is out of scope of this article. Here are the steps needed to configure connectors.

To define an HR connector and associate it to a connector group, follow menu path Governance, Risk and Compliance > Common Component Settings > Integration Framework > Maintain Connectors and Connection Types. In my example, I define the target connector HRDCLNT100 in the SAP GRC system (Figure 5). Click the New Entries button and then provide values.

Figure 5

HRDCLNT100 defined in GRC system

To associate the target connector to connector groups, follow menu path Governance, Risk and Compliance > Common Component Settings > Integration Framework > Maintain Connection Settings. Select the target connector from the options shown in the drop-down menu in Figure 6. Press Enter.

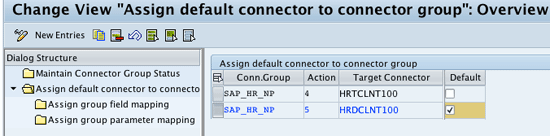

Figure 6

HRDCLNT100 associated to SAP_HR_NP group in GRC system

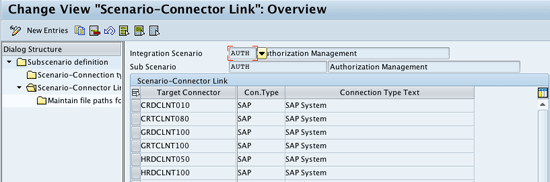

Add HRDCLNT100 to AUTH (Authorization Management), PROV (Provisioning), ROLEMG (Role Management), and SUPMG (Role Management Super User Privilege Management) integration scenarios.

Figure 7

HRDCLNT100 associated to AUTH scenario

Follow menu path Governance, Risk and Compliance > Access Control > Maintain Connector Settings (Figure 8). Click New Entries and enter the connector name. Select the application type and the environment.

Figure 8

Assign environment and application type to HRDCLNT100

Now associate the connector to the actions 4 (provisioning) and 5 (HR Trigger) as shown in Figure 9. Double-click the Assign default connector to connector group folder and add entries for actions 4 and 5 for SAP_HR_NP.You also need to select the box in the Default column to ensure that HRDCLNT100 is the default connector for HR triggers.

Figure 9

HRDCLNT100 added to actions 4 and 5

You do not need to associate the connector to the other actions: 1 (role generation), 2 (role risk analysis), and 3 (authorization maintenance) for HR Triggers. Follow menu path Governance, Risk and Compliance > Access Control > Maintain Mappings for Actions and Connector Groups.

Step 4. Set HR Triggers in SAP ERP HCM

To set the HR Triggers in SAP ERP HCM execute transaction code SPRO. Follow menu path Governance, Risk and Compliance (Plug-In) > Access Control > Maintain Plug-in configuration Settings. Maintain the connector name for the HR and GRC systems (both have to be exactly the same as defined in the GRC system). To turn on the HR triggers for this HR system, click the New Entries button and add the three parameters shown in Figure 10.

Figure 10

SPRO configuration in the SAP ERP HCM system

Step 5. HR Trigger Settings in the SAP GRC System

At this point, it’s important to identify the events in the SAP ERP HCM system that should trigger request creation in Access Request Management. For this article, I focus on hiring actions in the SAP ERP HCM system. I also describe the configuration related to terminate actions in the SAP ERP HCM system.

Figure 11

Add Request type for new hire

Figure 12

Add actions to a new hire request type

Add the same number of request types as the number of HR events. Select the checkbox in the Active column for the corresponding request type. In my example request types 23 and 24 are for HR new hire and terminate actions (Figure 13).

Figure 13

Add the same number of request types as the number of HR events

Follow menu path Governance, Risk and Compliance > Access Control > User Provisioning > Maintain Settings for HR Trigger. Click New Entries and add entries for the corresponding actions for the request types you created earlier (Figure 14). If you want to update other SU01 (user master) fields, click the drop-down menu and select Yes or No for each of the fields.

Figure 14

New hire HR Trigger (HRNW1) action for request type 23

To add a system for that particular action, click the Maintain System folder (Figure 15). This system is added to the request. If you want to provision to more systems in addition to HR, add them here.

Figure 15

System for HRNW1 action

To add actions for the two request types, click the Maintain Action folder (Figure 16).

Figure 16

Actions added for both the request types

Step 6. Business Rule Framework (BRF+) Configuration in the SAP GRC System

To configure BRF+ in the SAP GRC system, execute transaction code SPRO. Follow menu path Governance, Risk and Compliance > Access Control > Maintain AC Applications and BRFplus Function Mapping. Copy the BRF Function Id for HR Triggers from this screen (Figure 17).

Figure 17

Function ID for HR Triggers BRF+ application

After you execute the transaction BRF+, a browser (e.g., Internet Explorer) window opens. Click Workbench and select Open Object... from the list of options (not shown). In the pop-up box that appears paste the BRF+ function ID copied earlier (Figure 17) and then click the Show button (Figure 18).

Figure 18

BRF+ function ID

In the screen for the BRF+ function click the Assigned Rulesets tab and click the Create Ruleset button (Figure 19).

Figure 19

The Assigned Rulesets tab in the HR Trigger function

In the pop-up box that appears (Figure 20) enter the name, short text, text, and application. Click the Create and Navigate To Object button.

Figure 20

Create the ruleset

In the next pop-up box click the Yes button to save the object. Enable the ruleset by clicking the Enable Ruleset button (not shown). Then assign the priority to the ruleset. Click Ruleset Operations and select Assign Ruleset Priority from the list of options (Figure 21).

Figure 21

Assign priority

Enter the priority and click the OK button (Figure 22).

Figure 22

Save the priority

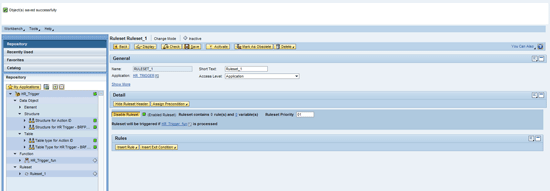

In the screen that appears, click the save icon. You receive a status message like the one shown in Figure 23.

Figure 23

Status message indicating that Ruleset_1 is saved

To create the rule right-click the HR_TRIGGER link in the Application field. Go to Create > Rule... (Figure 24).

Figure 24

Add a rule to the ruleset

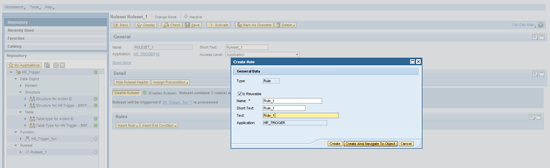

In the pop-up box that appears enter the details as shown in Figure 25. Click the Create And Navigate To Object button.

Figure 25

Create rule_1

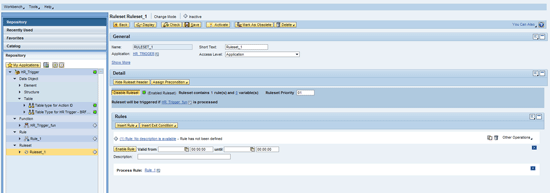

To save the rule click the save icon. Now insert the rule in the ruleset that you created earlier. In the Rules section click Insert Rule and then choose Select... (Figure 26).

Figure 26

Insert a rule in ruleset_1

In the pop-up box that appears (Figure 27) select the rule RULE_1.

Figure 27

Select the Rule_1

To save the ruleset click the save icon. You receive a status message stating that Rule 1 has been defined (Figure 28).

Figure 28

Rule_1 is inserted in Ruleset_1

In the next screen (Figure 29) select Rule_1. Click Add and then select Process Expression and Create… from the options in the menu.

Figure 29

Create a Process Expression

In the pop-up box that appears (Figure 30) define the Process Expression. Populate the Name, Short Text, and Text fields. Enter HR_TRIGGER in the Application field. Now click the create button.

Figure 30

Define the Process Expression

In the next screen (Figure 31) associate the Process Expression type to a loop by selecting Loop from the options in the menu. Click the Create button.

Figure 31

The Process Expression is associated to Loop

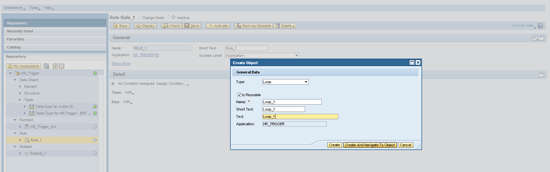

In the next pop-up box that appears (Figure 32) enter Loop_1 in the Name, Short Text, and Text fields. Enter HR_TRIGGER in the Application field and click the Create And Navigate To Object button.

Figure 32

Provide values for Loop_1

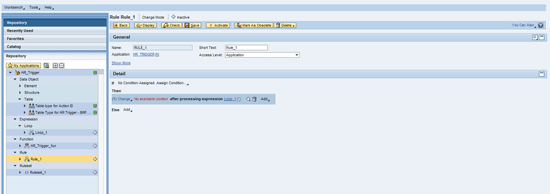

The next screen (Figure 33) shows that Loop 1 is added to Rule_1.

Figure 33

Loop_1 is added to Rule_1

Click the Loop_1 button in the middle of the next screen (Figure 34).

Figure 34

Open Loop_1

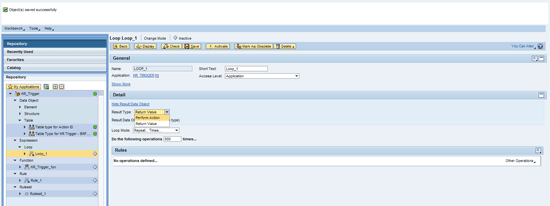

In the pop-up box that appears (not shown) click the Yes button to save the object Rule_1. You receive a status message indicating that the object was saved successfully. In the Result Type field select Perform Action (Figure 35).

Figure 35

Select Result Type

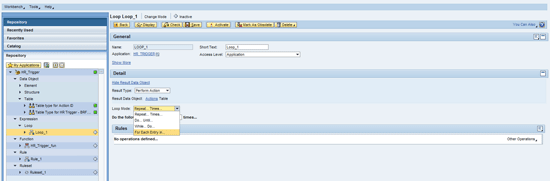

Select the Loop Mode For Each Entry in… as shown in Figure 36.

Figure 36

Select a Loop Mode

Select the table by clicking Select… as shown in Figure 37.

Figure 37

Select the table

In the pop-up box that appears (Figure 38), select the HR_TRIGGER_TABLE.

Figure 38

Select the HR_TRIGGER_TABLE

Click the save icon to save the loop Loop_1. Now create one more rule as shown in Figure 39.

Figure 39

Add the rule to the application

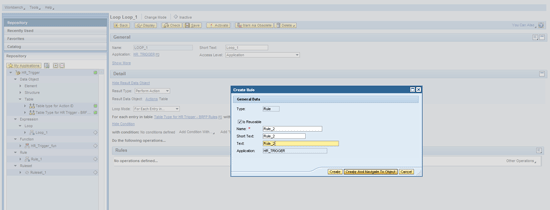

In the pop-up box that appears, enter the details shown in Figure 40. Click the Create And Navigate To Object button.

Click the save icon to save the rule Rule_2. You receive a status message indicating that the object was saved successfully (this screen is not shown). Now add Rule_2 as shown in Figure 41.

Figure 41

Add Rule_2 to Loop_1

In the pop-up box that appears click the Search button. Select the RULE_2 object (Figure 42).

Figure 42

Highlight the row containing Rule_2

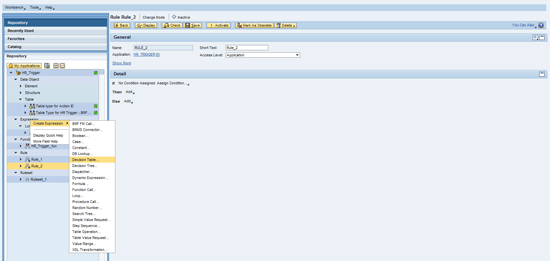

Save the loop Loop_1. You receive a status message indicating that the object was saved successfully. Then create a decision table as shown in Figure 43.

Figure 43

Create a decision table

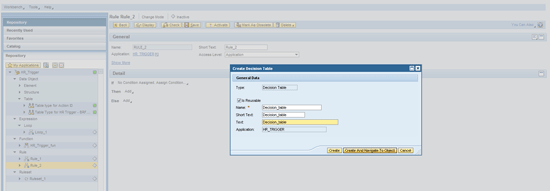

In the pop-up box that appears enter the details as shown in Figure 44. Click the Create And Navigate To Object button.

Figure 44

Provide values for the decision table

A pop-up box appears with a message stating that a Decision Table was created successfully (Figure 45).

Figure 45

The column selection screen for the decision table

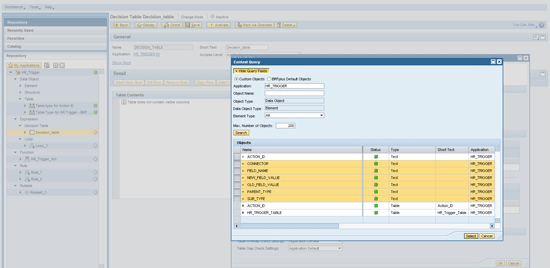

Click the Insert Column button and then choose From Context Data Objects from the list of options in the drop-down menu (I have not included a figure showing this menu). Select the objects in the table and click the Select button (Figure 46).

Figure 46

Select objects in the table

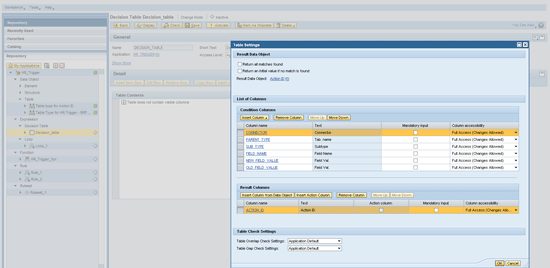

The selected objects are displayed in the table shown in Figure 47. Now click the Insert Column from Data Object button in the Result Columns table.

Figure 47

Selected columns appear in the Condition Columns table

In the pop-up box that appears click the Search button. Select the object and click the Select button (Figure 48).

Figure 48

The selection screen for result columns

The selected objects are displayed in the table. Now click the OK button (Figure 49).

Figure 49

Selected columns for condition and result columns

Now you can find the columns in the table (Figure 50).

Figure 50

The screen showing all the selected columns under table contents

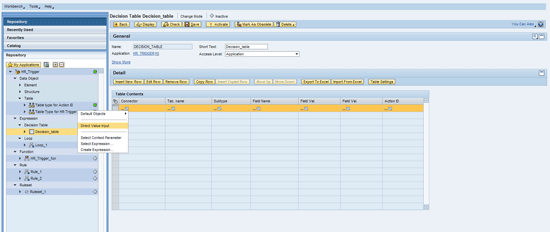

Click the Insert New Row button to add the contents to the decision table (Figure 51).

Figure 51

Add contents to the decision table

Enter the connector value (e.g., HRDCLNT100) and add it to the connector. Click the OK button (Figure 52).

Figure 52

Add the connector value

Follow the same steps and add values for the necessary columns as shown in Figure 53.

Figure 53

Condition values for new hire action

Add another row by following the same steps, and provide values for the next action (Figure 54).

Figure 54

The condition screen

You can see two entries in the decision table matching the request types and HR Trigger actions you created earlier in the SAP GRC system (Figure 55):

• Condition  1 is for a hiring event and it only triggers the event when the user ID starts with a character from A…Z
• Condition  2 is for a termination event

Figure 55

New hire and termination conditions

Save the decision table by clicking the Save button. Activate the decision table by clicking the Activate button. Add a Process Expression as shown in Figure 56.

Figure 56

Add a Process Expression to Rule_2

Select the object DECISION_TABLE (Figure 57). Click the Search button and then highlight Decision_Table.

Figure 57

Select the Decision_Table object

Now assign the value to the Action ID result data table. Click Add and from the drop-down menu select Assign Value to Content > Table type for Action ID. Select Insert (Figure 58).

Figure 58

Assign a value to the action ID result data table

In the next screen select the context parameter (Figure 59).

Figure 59

Select a context parameter

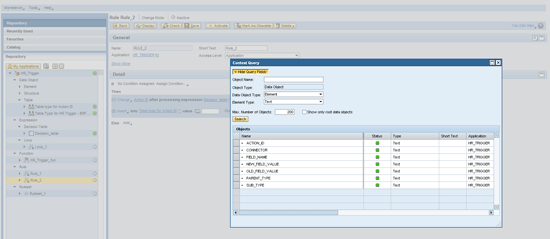

Select the ACTION_ID object (Figure 60). Action_ID captures the event from HR (new hire or terminate).

Figure 60

Select the Action_ID object

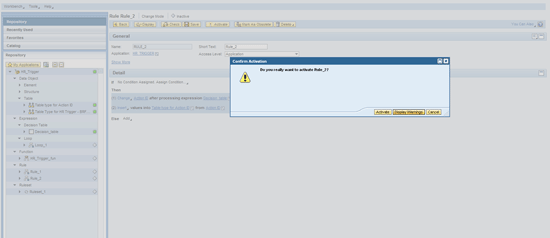

Save Rule_2. You receive a status message indicating that the object was saved successfully. To activate this rule, click the Activate button. A pop-up box appears asking you if you really want to activate Rule_2. Click the Activate button as shown in Figure 61. You receive a status message indicating that the object was activated.

Figure 61

Activate Rule_2

Now activate the loop Loop_1. Highlight Loop_1 and click the Activate button (Figure 62).

Figure 62

The Loop_1 screen showing condition and rules

In the pop-up box click the Activate button (Figure 63).

Figure 63

Activate Loop_1

You receive a status message indicating that the object was activated successfully. Now activate Rule_1. Highlight Rule_1 and click the Activate button (Figure 64).

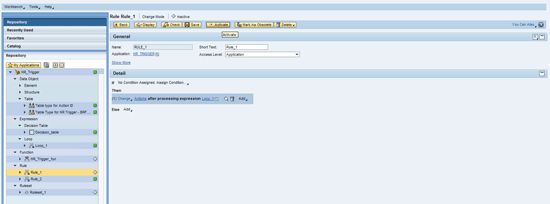

Figure 64

Activate Rule_2

In the pop-up box that appears click the Activate button. Now activate the Ruleset_1. Highlight Ruleset_1 and click the Activate button. Again, you receive a status message indicating that the object was activated successfully. You have now completed the configuration of HR Triggers. Now I explain how to troubleshoot if there is any issue.

Step 7. Test HR Triggers

Note
I assume that reader has adequate knowledge of an SAP ERP HCM system. Explaining HR-related transaction codes is out of scope for this article.

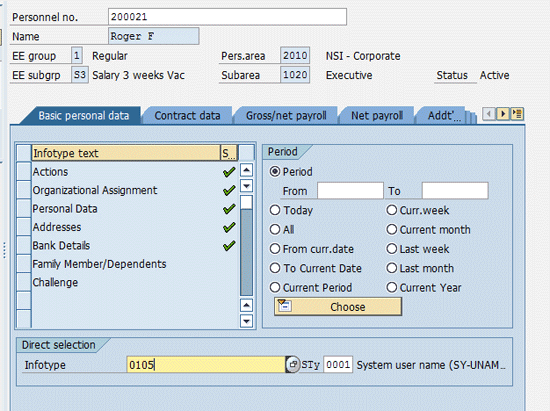

Execute transaction PA30. Perform a hiring, position change, or termination action. In my example, I initiate a hiring event (Figure 65).

Figure 65

Assign a user name (user ID) to a user in HR

Figure 66 shows the transaction PA30 screen after assigning a user name to a personnel number.

Figure 66

A user name assigned to a personnel number

Step 8. Monitor a Queue in the SAP ERP HCM System

In GRC 10.0, HR Triggers that are generated from the SAP ERP HCM system are stored in a queued RFC (qRFC). This queue is processed from time to time and the HR Triggers are then sent to the GRC box (i.e., the GRC system). This is designed to deal with a situation in which the GRC box is down and HR Triggers are still generated. In this case, as soon as the GRC box is up again, the HR Triggers queue begins processing again.

Execute transaction code SMQ1. Enter the client and * in the Queue Name field (Figure 67). If you see a queue for /GRCPI/HR_TRIGGER, then there may be an issue with the HR Triggers. To resolve the issue, select the HR Trigger row and click the Activate button.

Figure 67

Monitor a queue in the SAP ERP HCM system

Step 9. Review the Application Log in the SAP GRC System

Once the trigger is generated and received in the GRC box, the transaction code SLG1 in the GRC box shows the HR Trigger logs. In the logs it shows the HR data that is modified. The log also shows if the BRF+ rule is not satisfied.

Execute transaction code SLG1. Enter GRAC as the value for Object and HRTRIGGER for the Subobject (Figure 68). GRAC is for SAP Access Control. This is how SAP built the SAP GRC system. Select the green check mark (not shown) to execute this transaction.

Figure 68

Select values for the Object and Subobject fields

Figure 69 is a list of all of the HR Triggers. You can double-click HR Triggers from the top panel to see more information about that trigger (details are displayed in bottom panel).

Figure 69

Logs for HR Triggers

Step 10. Check the Request in GRC System Front End

Once you are able to confirm that the HR Trigger is working and a request has been created, you can validate the request in the Access Control front end.

Note
Make sure Multistage Multipath (MSMP) workflow is active and working before moving to this step.

Open the SAP NetWeaver Business Client front end and go to Search Requests under the Access Request Management tab. Although configuring HR Triggers in SAP Access Control 10.0 is not straightforward, it’s a solid functionality and a vast improvement over HR Triggers in SAP Access Control 5.3.
