Follow this simple two-step process for transferring a custom hierarchy for an InfoObject from your development system into your production system.
Dear BW Expert,
I’ve created a custom hierarchy for an InfoObject directly in the BW development system and did not load it from R/3. How do I get the hierarchy into the production environment? Should I transport the tables and copy the values, or do I have to create a new hierarchy in production?
- The system where you create the hierarchy (development) and the system where you want to use the hierarchy (production) have to be linked. The development system is the source system (Figure 1), which is normally the case when you transport all your work from development into production.
- Production has to be open for configuration.
Tip!
Make sure that no one is working in production at this time and no configuration is being done.
1. Create your hierarchy for the specific InfoObject.
2. Create an export DataSource for this InfoObject.
In production, follow these steps:
1. Replicate the DataSource from the development system.
2. Link the DataSource to the InfoSource of the InfoObject that includes the hierarchies (Figures 2 and 3).
3. Create an InfoPackage for the InfoObject that includes the hierarchy (Figures 4 and 5). If you have more than one InfoObject, you must create an InfoPackage for each one.
4. Load the InfoObject from the development system into the production system with the same process as for loading data.
It is possible to create more than one hierarchy in BW. If you need your hierachies in production, you must load them one at a time. To overwrite the hierarchy, simply change it in the development system and reload it into production.
Figure 1
Make sure the development system is linked to the production system
Figure 2
Assign the DataSource to the InfoObject

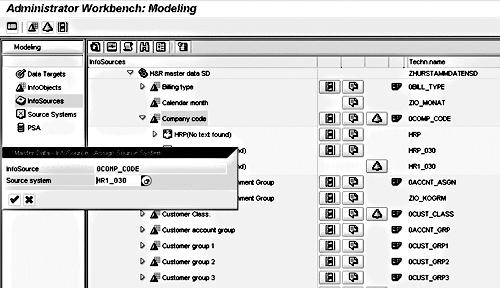

Figure 3
Choose the source system

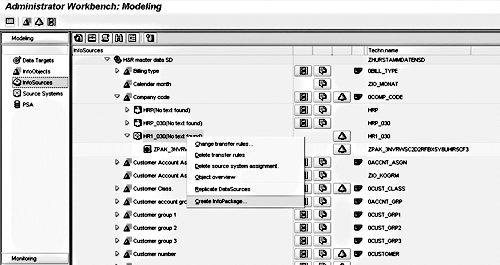

Figure 4
Create an InfoPackage

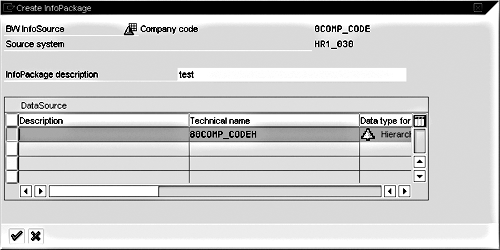

Figure 5
Choose the hierarchy DataSource for the InfoPackage
