With the release of SAP BusinessObjects 4.2, new functionality has been included within the Web Intelligence reporting tool that allows users to view and analyze geographic data (country, region, state, county, and city). Subsequently Web Intelligence 4.2 now enables visual analysis of geographic data within both maps and charts similar to the geographic analysis that could be performed within SAP Explorer and SAP Lumira. This new geographic analysis of data within Web Intelligence 4.2 enables users to achieve more advanced data analysis and to be able to make more informed decisions about geographic data. I explain some basic concepts within the Web Intelligence 4.2 query and reporting tool. I provide step-by-step instructions on how to configure geographic data within a Web Intelligence 4.2 document so that the geographical data can be displayed and analyzed in both a geographic map and chart format. In addition, I show how to configure geographic data fields using Web Intelligence 4.2 so that the geographic data can be analyzed within both geographic maps and charts.

Step 1. Connect to the SAP BusinessObjects 4.2 BI Launch Pad

  To configure and use the geographic map and chart functionality within Web Intelligence 4.2, a user must have the following:

• Access to the SAP BusinessObjects 4.2 BI launch pad application
• Access to the SAP BusinessObjects 4.2 Web Intelligence application
• Create/edit rights within Web Intelligence

An administrator of SAP BusinessObjects should be able to set these rights for any users of the system as needed. Once you’ve established that you have the prerequisites in place, connect to the BI launch pad application using an Internet browser with the URL for the BI launch pad application (screen not shown), and log in to the SAP BusinessObjects 4.2 BI launch pad application.

Step 2. Create a New Web Intelligence Document

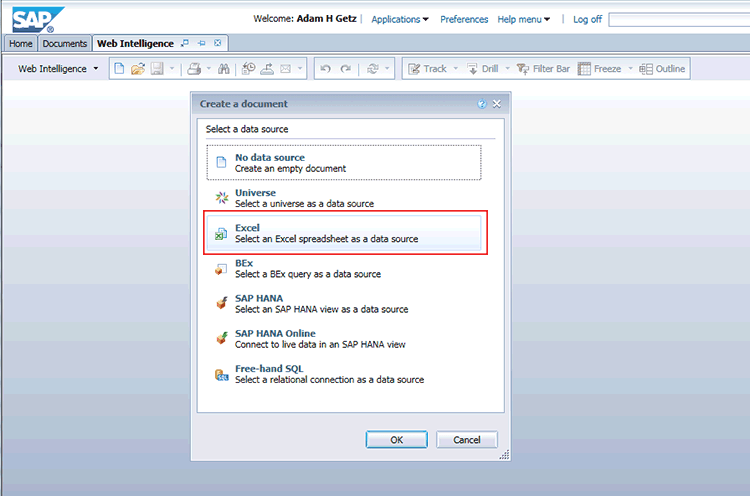

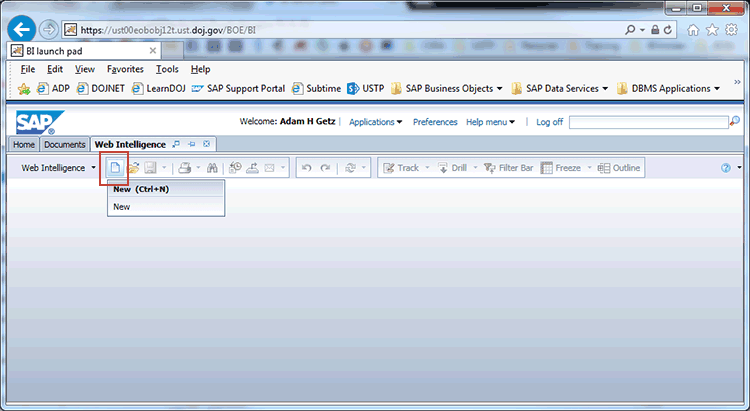

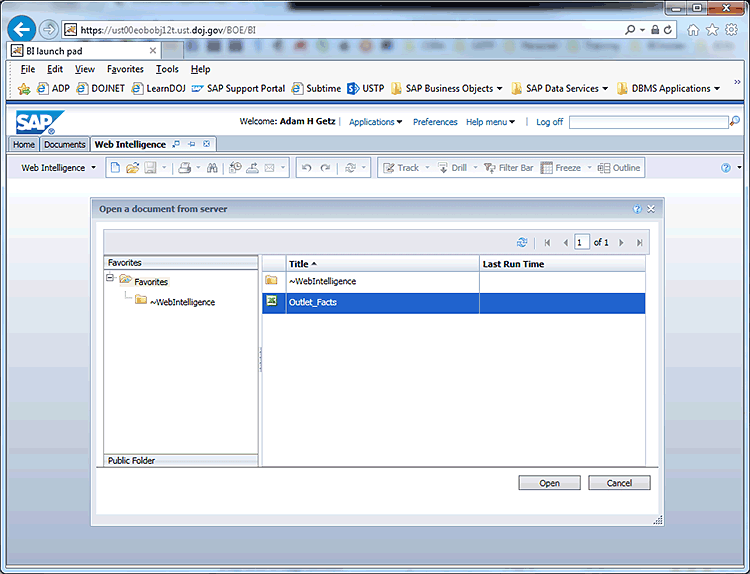

  After you log in to the BI launch pad application, open the Web Intelligence application by clicking Applications and then Web Intelligence as shown in Figure 1. Within the Web Intelligence application page, click the new icon or select Ctrl+N as shown in Figure 2 to create a new Web Intelligence document.   Within the Create a document dialog screen, select the data source for the Web Intelligence document as shown in Figure 3 and click the OK button. In this example, I chose Excel as the data source for the document. However, any of the other types of data sources can be used as well with geographic data.   Now pick an Excel document from a folder within the BusinessObjects server as shown in Figure 4 and click the Open button. In this case, I chose the Excel file Outlet_Facts from my Favorites folder.

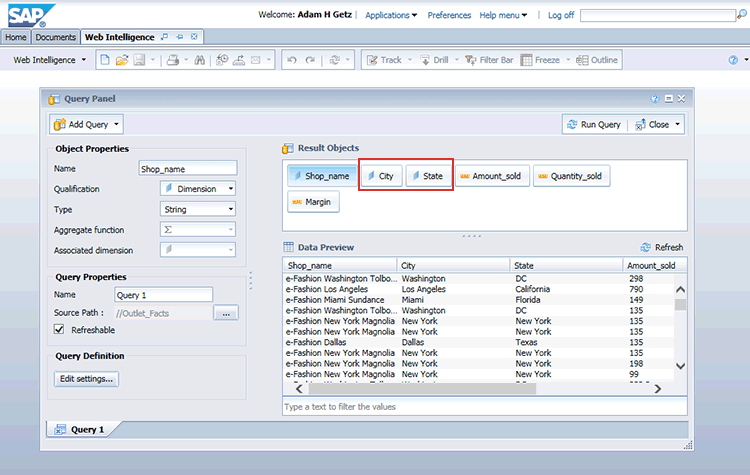

Then select the fields to be included within the document from the Query Panel as shown in Figure 5. When you complete your selections, click the Run Query button. In this example, I included the geographic fields City and State within the Result Objects.

After you execute Run Query from the Query Panel, a new Web Intelligence document appears as shown Figure 6.

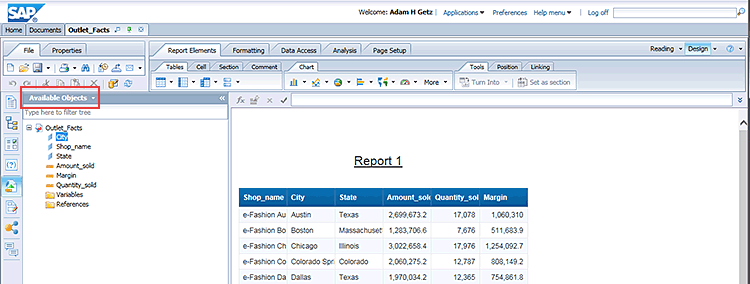

The document will open in Design mode as shown in Figure 7. The Design button in the top right is selected, and Available Objects are shown in the left side panel. The button converts the mode of the report from Preview to Design.



Step 3. Map Geographical Data Within Web Intelligence Document

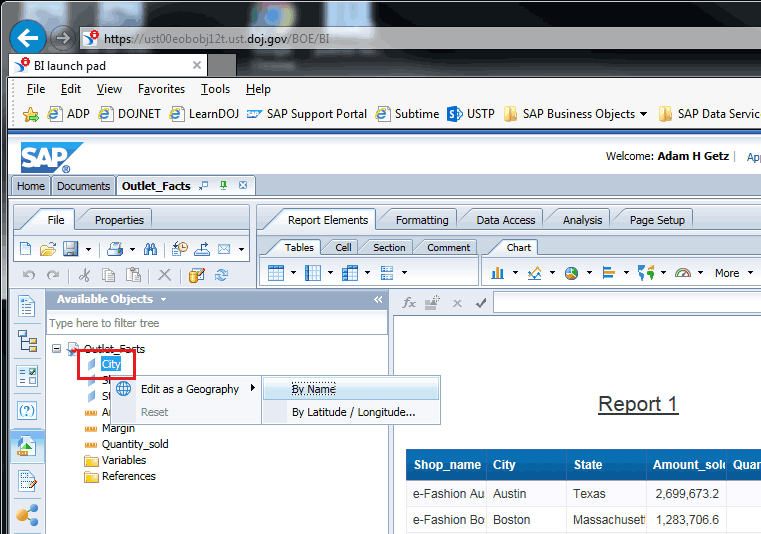

Within Design Mode of the Web Intelligence document and within the Available Objects side panel, right-click the City dimension field and select Edit as a Geography and then By Name on the context menu as shown in Figure 8.

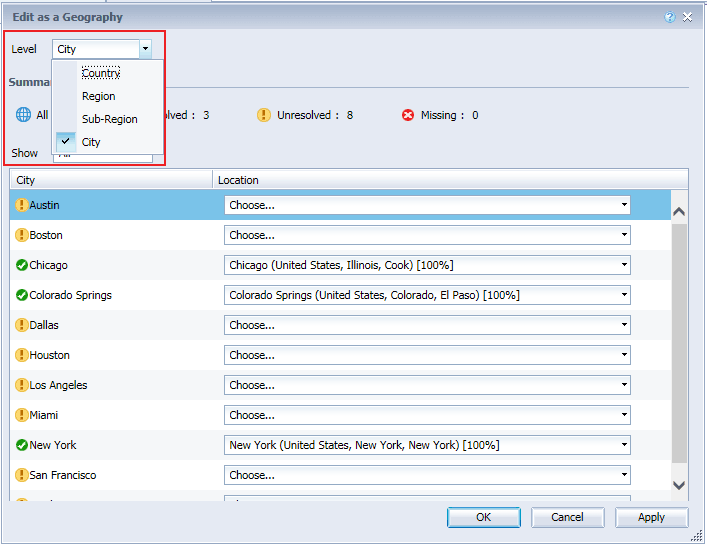

Select City from the Level drop-down menu as shown Figure 9.

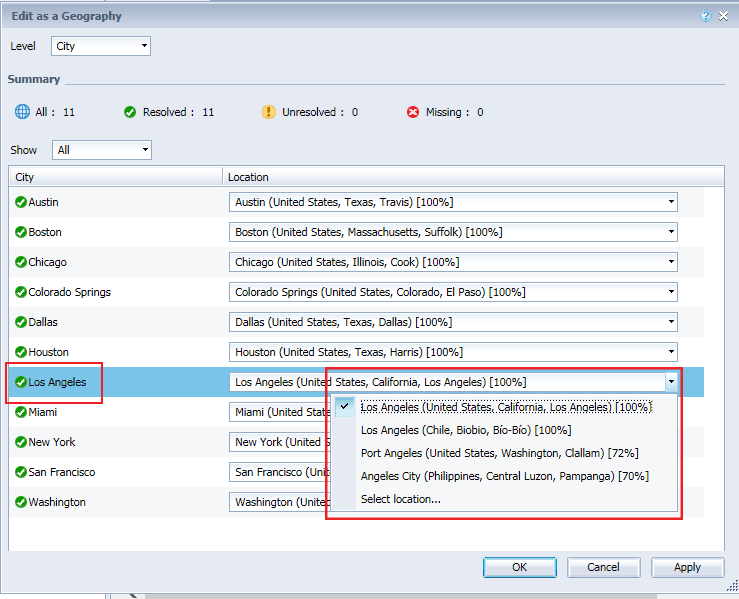

For each of the unresolved city/location pairings, choose a location from the location drop-down menu to match with the corresponding city, as shown in Figure 10. Click the OK button. In this example, I chose the city of Los Angeles and matched it with the location of Los Angeles (United States, California, Los Angeles) [100%]. There are five available choices for the location of Los Angeles.

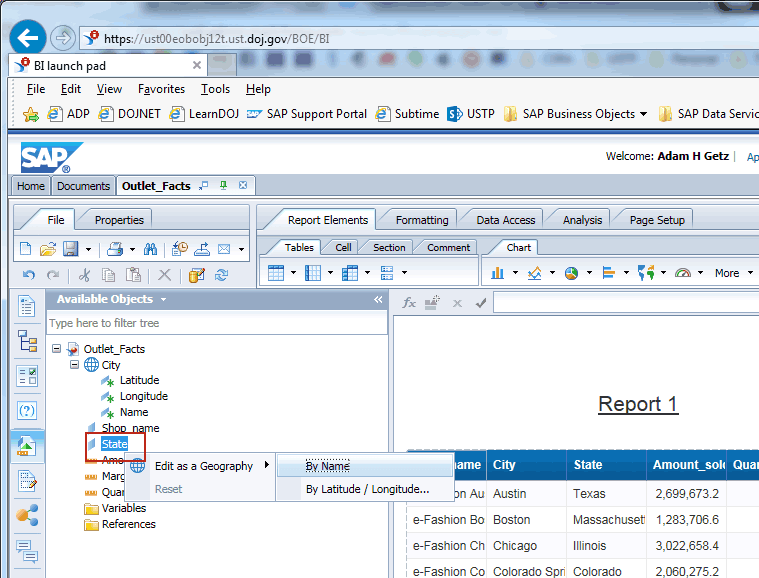

Now right-click the State dimension field and select Edit as a Geography and then By Name on the context menu as shown in Figure 11.

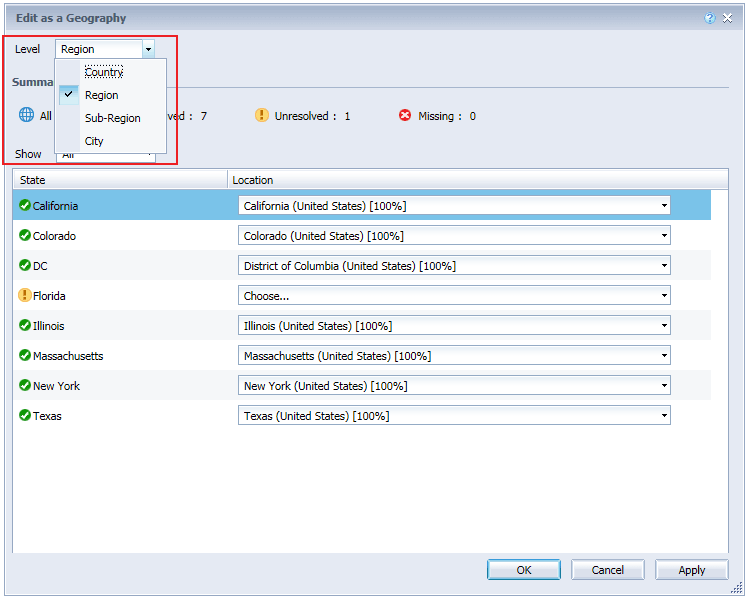

Select Region from the Level drop-down menu as shown Figure 12.

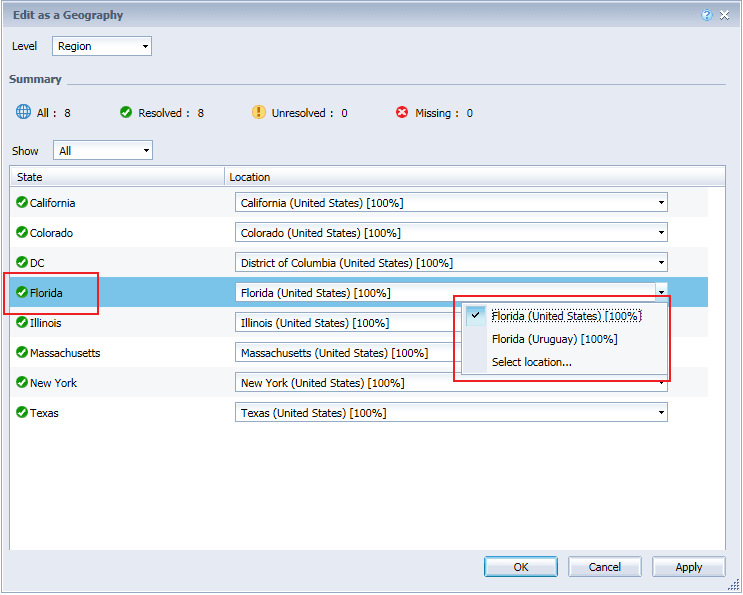

For each of the unresolved state/location pairings, choose a location from the location drop-down menu to match with the corresponding state as shown in Figure 13 and click the OK button. In this example, I chose the state of Florida and matched it with the location of Florida (United States) [100%]. There are two available choices for the state of Florida.

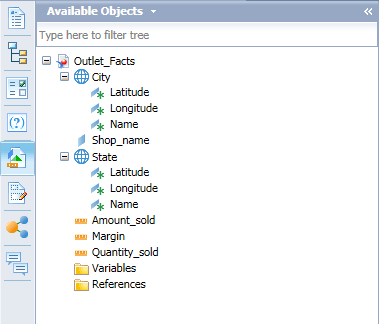

When you have finalized the mapping for the chosen field, close the Edit as a Geography dialog box. In the Available Objects side panel, the dimension now appears as a geographical dimension with details of Latitude, Longitude, and Name as shown in Figure 14. In this example, City and State now appear as geographic dimensions.



Step 4. Create a Geographic Chart



To create a geographic chart within a Web Intelligence document, an existing query with a geographic dimension and a numeric field must exist within the document. In my example, the query was added to the document at the time of the document creation as shown in Figure 6. The query includes geographic fields of City and State as well as numeric fields of Amount_sold, Quantity_sold, and Margin.

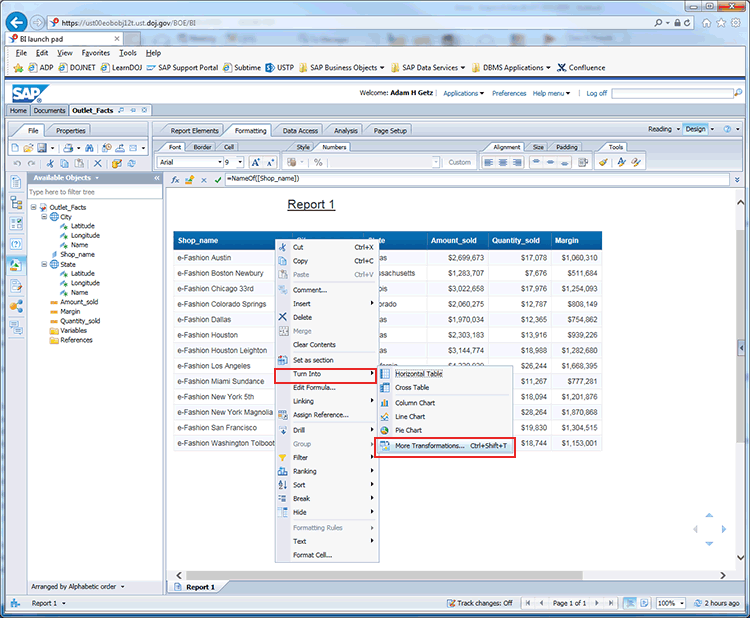

Now convert an existing query within a document into a geographic chart. Right-click the report element containing the returned data set and select the Turn Into and then More Transformations commands in the context menu as shown in Figure 15.

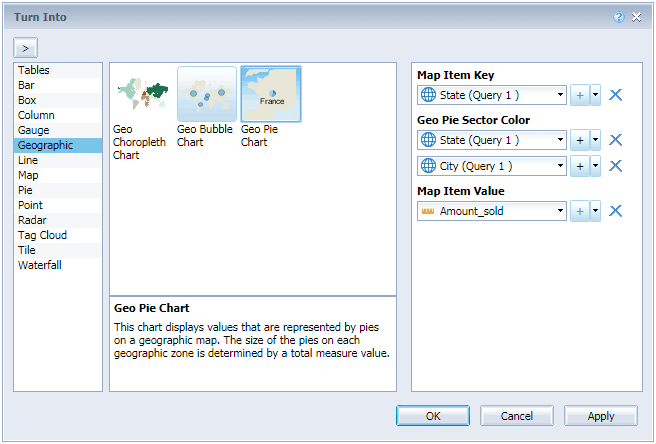

Within the Turn Into dialog box, select the Geographic section from the left panel, select the chart type from the middle panel, and enter chart parameters (Map Item Key, Geo Pie Sector Color, and Map Item Value) from the right panel as shown in Figure 16. When you are finished, click the OK button. In this example, I chose the following settings:

• Chart Type: Geo Pie Chart
• Map Item Key: City (Query 1)
• Geo Pie Sector Color: State (Query 1) and City (Query 1)
• Map Item Value: Amount_sold



The document query is then converted into a geographic chart as shown in Figure 17. In this example, a Geo Pie Chart is displayed.

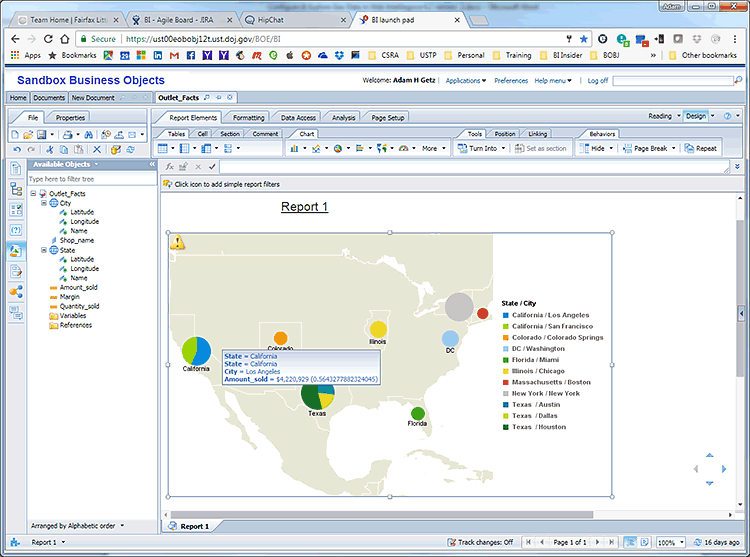

  To view the numeric value related to a geographic area, mouse over the respective pie corresponding to the area as shown in Figure 18. In this case, I place the mouse over the blue part of the pie corresponding with the state of California and city of Los Angeles. Within the bubble help, the name of the state of California, city of Los Angeles, the total value of Amount sold for Los Angeles appears with the fraction of total value for the state appearing in parenthesis.

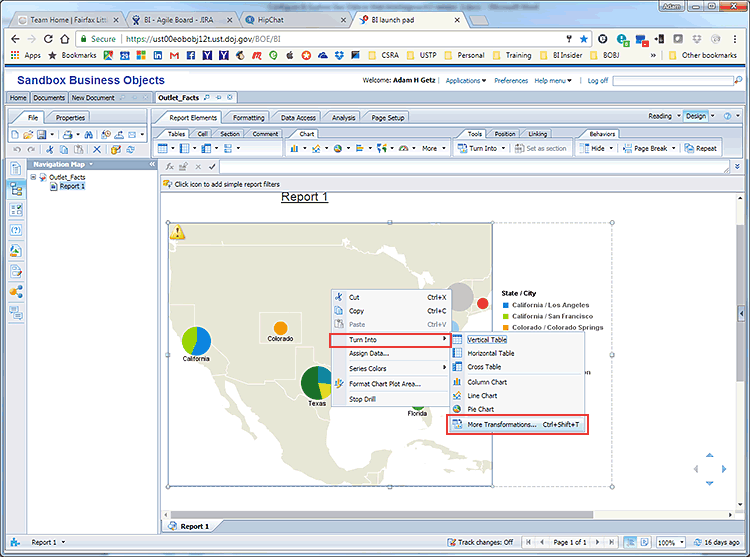

Now convert the existing geographic chart into a Geo Choropleth Chart. Right-click the geographic chart and select the Turn Into and then the More Transformations commands in the context menu as shown in Figure 19.

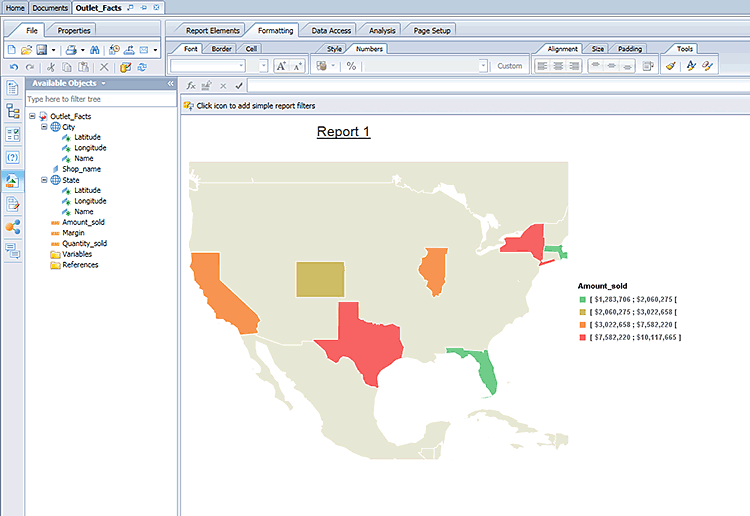

Now a Geo Choropleth Chart appears as shown in Figure 20. In this example, I chose the following:

• Chart Type: Geo Choropleth Chart
• Map Item Key: State
• Map Item Value: Amount_sold

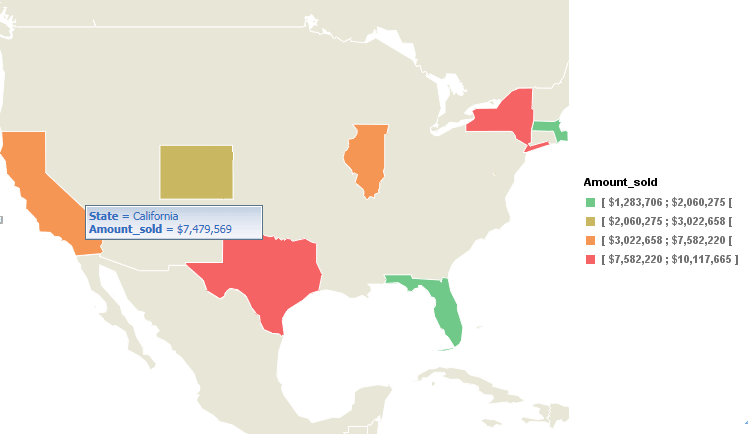

To view the numeric value related to a geographic area, mouse over the respective geographic zone as shown in Figure 21. In this case, I place the mouse over the state of California. Within the bubble help, the name of the state of California and the total value of Amount_sold for California appear.

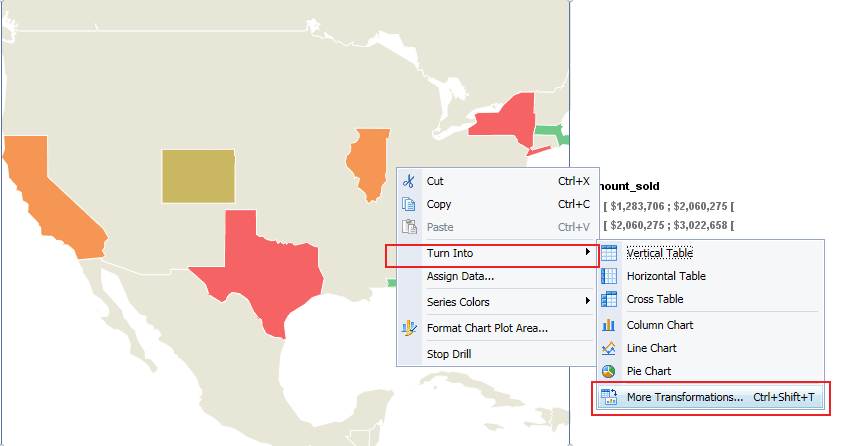

Now convert the existing chart into a Geo Bubble Chart. Right-click the geographic chart and select the Turn Into and then the More Transformations commands in the context menu as shown in Figure 22.

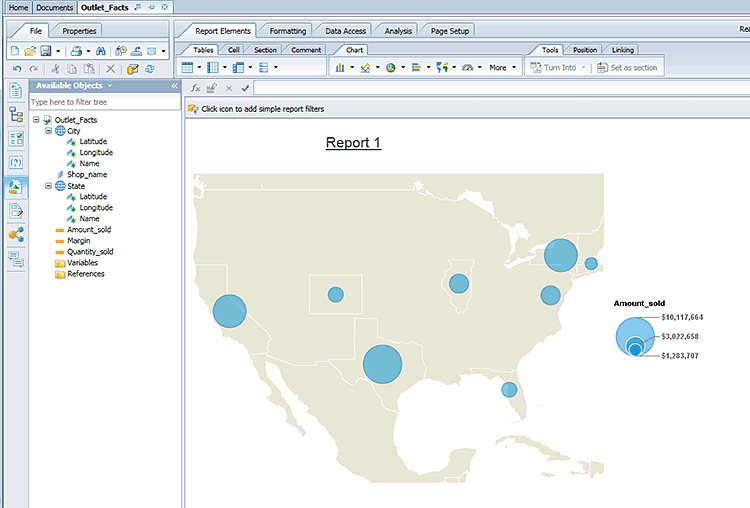

Now a Geo Bubble Chart appears as shown in Figure 23. In this example, I chose the following:

• Chart Type: Geo Bubble Chart
• Map Item Key: State
• Map Item Value: Amount_sold

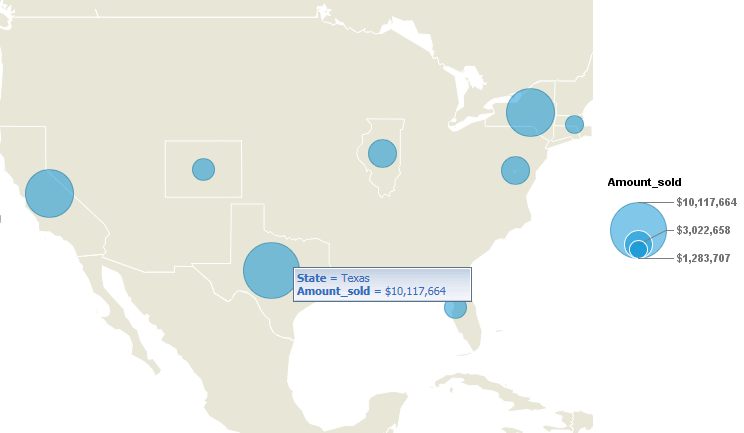

  To view the numeric value related to a geographic area, mouse over the respective geographic zone as shown in Figure 24. In this case, I place the mouse over the state of Texas. Within the bubble help, the name of the state of Texas and the total value of Amount_sold for Texas appear.
